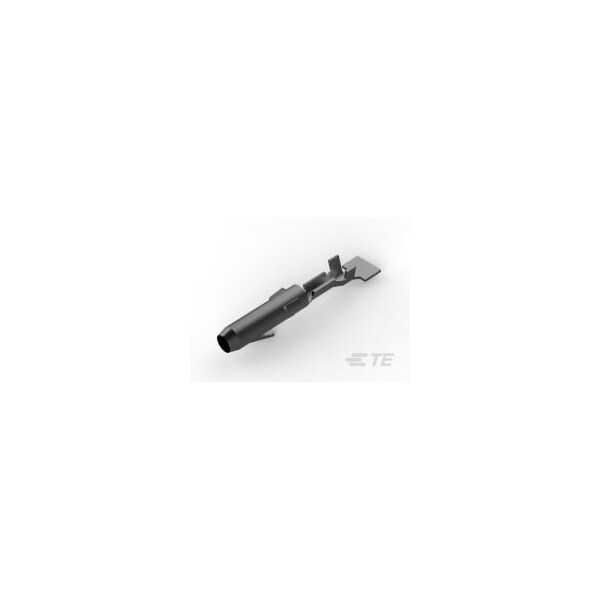

Connector Contact, 22 AWG, 250 V AC, Crimp Termination Only
Mfr # 61173-1
Zoro # G101010134
product price:Â
$
0.41
/ea
Sold in multiples of 208 for $85.28
Key Features
Termination Style
Crimp Termination Only
Maximum Wire Size
22 AWG
Minimum Wire Size
30 AWG
Contact Material
Brass
Maximum Voltage
250 V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 61173-1
- Zoro #
- G101010134
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 22 AWG
- Minimum Wire Size
- 30 AWG
- Max. Insulation Dia.
- 1.91 mm
- Length
- 0.72 in
Details
- Item
- Connector Contact
- Termination Style
- Crimp Termination Only
- Contact Material
- Brass
- Maximum Voltage
- 250 V AC
- Maximum Operating Temperature
- 105 Degrees C
- Standards
- CSA Certified, UL E28476, UL Recognized
- UL 94 Flammability Rating
- V-2
- For Use With
- Commercial MATE-N-LOK Housings
- Application
- Power
- Wire Type
- Discrete; Stranded
- Contact Type
- Socket
- Contact Finish
- Pre-Tin Plated
- Current Rating
- 15 A
- Flammability Rating
- UL 94 V-2
- Connector Terminates To
- Wire & Cable
- Minimum Operating Temperature
- -55 Degrees C
