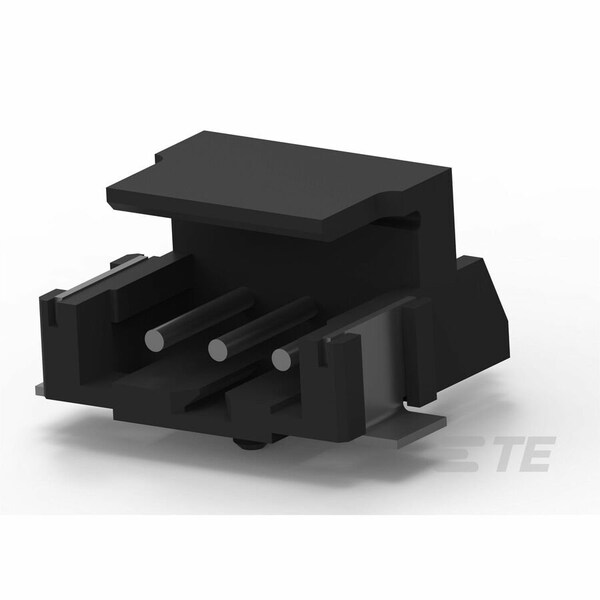

CT BOX HDR H SMT 3P O/TAPE BLA

  • Mfr # 292173-3
  • Zoro # G900938677
product price:
$
0.99
/ea
Sold in multiples of 500 for $495.00

Key Features

Color
Black
Min. Single Wire Size
28 AWG
Max. Voltage
125V AC, 125V DC
Maximum Voltage
125 V AC/DC
Current
4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
292173-3
Zoro #
G900938677
UPC #
-
Country of Origin
China
Item
PCB Mount Header
Color
Black
Max. Voltage
125V AC, 125V DC
Maximum Voltage
125 V AC/DC
Current
4 A
Standards
UL 94V-0; CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Surface Mount
Connection Material
Brass
Material
Glass-Filled Polyamide
Wire Type
Discrete
Max. Temp.
105°C
Hole Center to Center
2 mm
Features
With Backwall/Post Interruptions; Panel Mount Feature; Shrouded
Number of Rows
1
Number of Contacts
3
Contact Type
Pin
Contact Finish
Tin Plated
Current Rating
4 A
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated

Dimensions

Min. Single Wire Size
28 AWG
Width
0.354 in
Height
5.8 mm
Max. Single Wire Size
22 AWG
Length
7.8 mm
Contact Plating Thickness
1 to 2 µm
Minimum Single Wire Size
28 AWG
Maximum Single Wire Size
22 AWG
