This item is Discontinued.

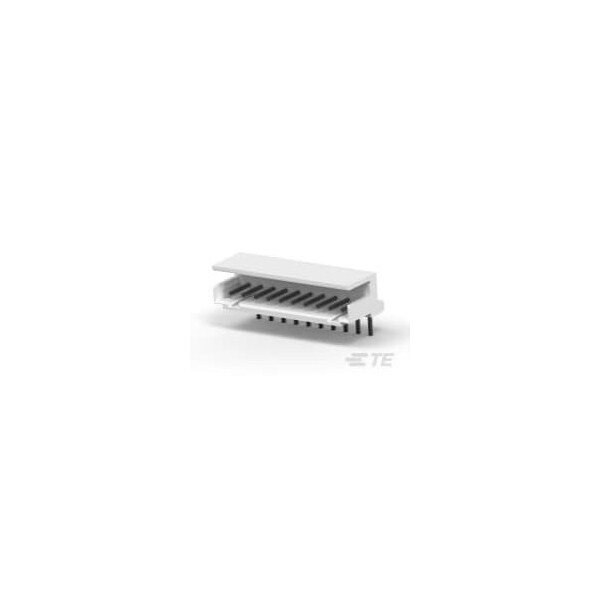

Te Connectivity CT P/HDR BOX H ASSY 10P W/KINK 1-292250-0

CT P/HDR BOX H ASSY 10P W/KINK (Discontinued)

  • Mfr # 1-292250-0
  • Zoro # G800937329
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1-292250-0
Zoro #
G800937329
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.228 in
Height
0.346 in
Length
21.8 mm
Max. Single Wire Size
22 AWG
Contact Plating Thickness
1 µm
Maximum Single Wire Size
22 AWG
Minimum Single Wire Size
28 AWG

Details

Item
Connector
Type
Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
125V AC/DC
Maximum Voltage
125 V AC/DC
Current
4 A
Standards
CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Max. Temp.
105°C
Connection Material
Brass
Wire Type
Discrete
Connector Type
Header
For Use With
Receptacle Connector
Features
Shrouded
Hole Center to Center
2 mm
Material
Nylon
Terminal Type
Through Hole - Solder
Current Rating
4 A
Number of Contacts
10
Number of Rows
1
Contact Type
Pin
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Termination Style
Through Hole - Solder
