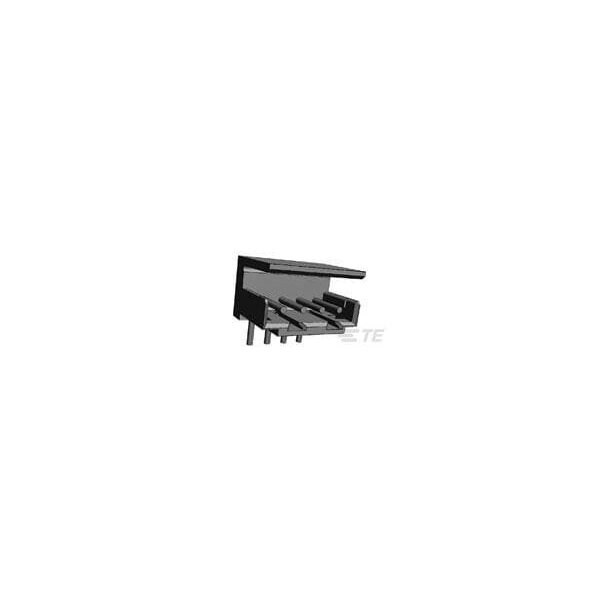

Te Connectivity CT P/HDR BOX H ASSY 2P W/KINK 2-292250-2 - main

CT P/HDR BOX H ASSY 2P W/KINK

  • Mfr # 2-292250-2

  • Zoro # G200939145

product price:  $0.25
/ea
Sold in multiples of 315 for $78.75

Key Features

Color
Blue
Min. Single Wire Size
28 AWG
Max. Voltage
125V AC/DC
Maximum Voltage
125 V AC/DC
Current
4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-292250-2
Zoro #
G200939145
UPC #
-
Country of Origin
United States

Dimensions

Min. Single Wire Size
28 AWG
Width
0.228 in
Height
8.8 mm
Length
0.228 in
Max. Single Wire Size
22 AWG
Contact Plating Thickness
1 µm
Minimum Single Wire Size
28 AWG
Maximum Single Wire Size
22 AWG

Details

Item
PCB Mount Header
Color
Blue
Max. Voltage
125V AC/DC
Maximum Voltage
125 V AC/DC
Current
4 A
Standards
UL 94V-0; CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Wire Type
Discrete
Max. Temp.
105°C
Material
Nylon
Features
Shrouded
Terminal Type
Through Hole - Solder
Hole Center to Center
2 mm
Connection Material
Brass
Contact Type
Pin
Number of Rows
1
Number of Contacts
2
Contact Finish
Tin Plated
Current Rating
4 A
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board

Description
