Shop TE CONNECTIVITY

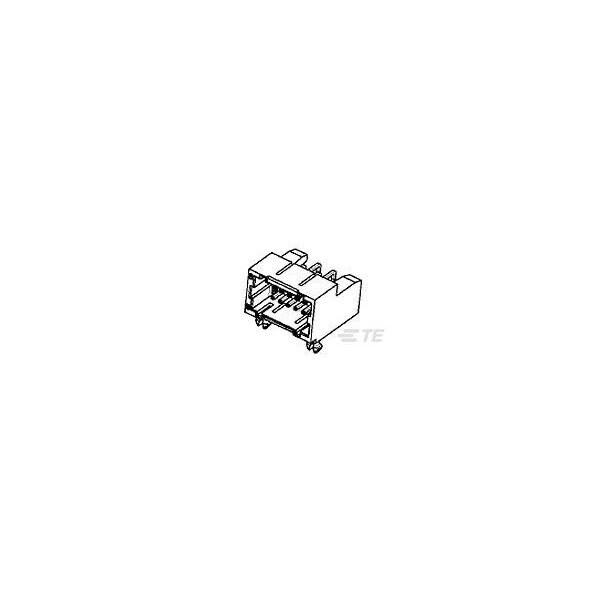

DBL ROW (H) DIP TYPE WITH BOAR

  • Mfr # 3-292262-4

  • Zoro # G401044105

product price:
$
9.55
/ea
Sold in multiples of 720 for $6,876.00

Key Features

Min. Single Wire Size
28 AWG
Max. Voltage
50V AC/DC
Max. Temp.
105°C
Standards
UL 94V-0; CSA Certified; UL E28476
Width
0.358 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-292262-4
Zoro #
G401044105
UPC #
-
Country of Origin
United States

Dimensions

Min. Single Wire Size
28 AWG
Width
0.358 in
Height
13.15 mm
Length
31 mm
Max. Single Wire Size
24 AWG
Contact Plating Thickness
1 µm
Max. Insulation Dia.
0.041 in

Details

Item
PCB Mount Header
Max. Voltage
50V AC/DC
Max. Temp.
105°C
Standards
UL 94V-0; CSA Certified; UL E28476
Features
Shrouded
Color
Natural
Material
Nylon
Terminal Finish
Pre-Tin Plated
Hole Center to Center
1.5 mm
Number of Contacts
34
Current Rating
2 A
Flammability Rating
UL 94 V-0
Contact Type
Pin
Connection Material
Brass
Wire Type
Discrete
Number of Rows
2
Contact Finish
Pre-Tin Plated
Terminal Type
Through Hole - Solder
Connector Terminates To
Printed Circuit Board
