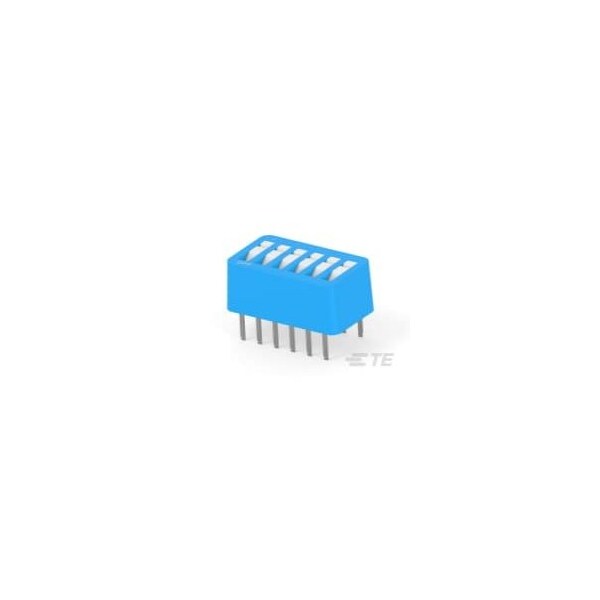

DIP SW 6 POSN W/TAPE AU
Mfr # 2-5435668-5
Zoro # G100966418
product price:Â
$
1.95
/ea
Sold in multiples of 90 for $175.50
Key Features
Length
17.27 mm [ .68 in ]
Height
7.36 mm [ .29 in ]
Termination Post Length
3.56 mm [ .14 in ]
Contact Current Rating (A)
1
Contact Mating Area Plating Material
Gold
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2-5435668-5
- Zoro #
- G100966418
- UPC #
- -
- Country of Origin
- Mexico
- Contact Current Rating (A)
- 1
- Contact Mating Area Plating Material
- Gold
- Contact Base Material
- Copper Alloy
- Seal Type
- Tape
- Voltage Rating (VDC)
- 40
- Number of Switches
- 6
- Actuator Style
- Rocker (Top Actuated)
- Auto-Insertable
- No
- Number of Positions
- 6
- Solder Tail Contact Plating
- Tin
- Low Profile
- Yes
- UL Flammability Rating
- UL 94V-0
- Configuration (Pole-Throw)
- Single Pole - Single Throw
- Sealed
- Yes
- Housing Color
- Blue
- Housing Material
- Polyester GF
- Mounting Type
- Through Hole
- Centerline
- 2.54 mm [ .1 in ]
- Product Type
- Switch
- Mounting Angle
- Vertical
- Switch Type
- DIP
