  9. DUOPLUG MKII FEMALE HSG WITH PCB LOCKING

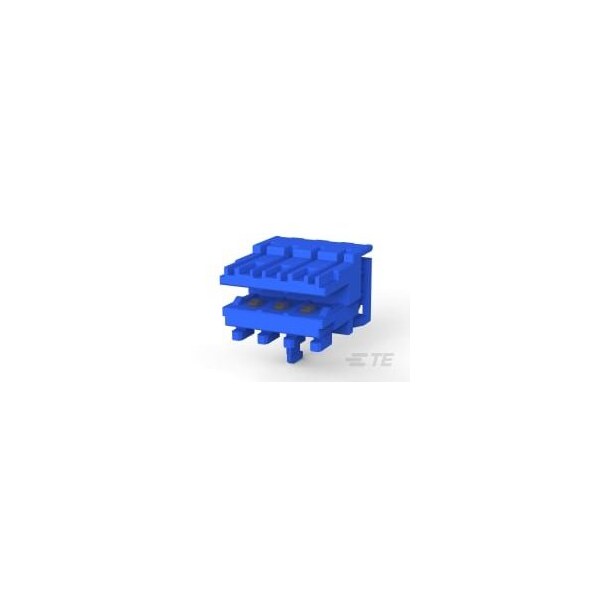

Te Connectivity DUOPLUG MKII FEMALE HSG WITH PCB LOCKING 9-1740154-3 - main

DUOPLUG MKII FEMALE HSG WITH PCB LOCKING

  • Mfr # 9-1740154-3

  • Zoro # G800957297

product price: $0.25
/ea
Sold in multiples of 333 for $83.25

Key Features

Color
Natural
Min. Single Wire Size
24 AWG
Max. Single Wire Size
22 AWG
Number of Rows
1
Max. Voltage
50V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9-1740154-3
Zoro #
G800957297
UPC #
-
Country of Origin
Austria

Dimensions

Min. Single Wire Size
24 AWG
Max. Single Wire Size
22 AWG
Height
7.3 mm
Max. Insulation Dia.
0.063 in
Contact Plating Thickness
3 to 6 µm

Details

Item
Connector
Color
Natural
Number of Rows
1
Max. Voltage
50V
Application
Signal
Connection Material
Copper Tin
Material
Glass-Filled Polyamide
Terminal Type
Insulation Displacement Crimp
Hole Center to Center
2.5 mm
Max. Temp.
110°C
Wire Type
Discrete
Connector Type
Card Edge
For Use With
PCB Frame; Tab Header
Flammability Rating
UL 94 V-2
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Contact Type
Socket
Contact Finish
Tin Plated
Current Rating
2 A
Number of Contacts
3
