Shop TE CONNECTIVITY

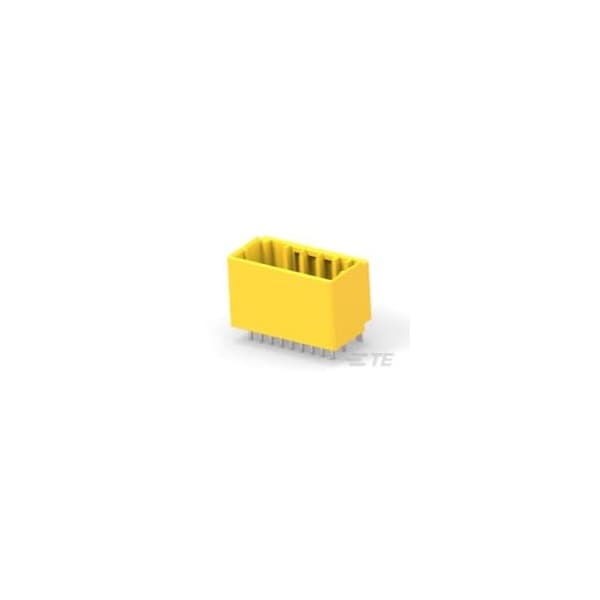

DYNAMIC 1100D HDR ASSY V 18PX YELLOW TIN

  • Mfr # 3-2040557-9
  • Zoro # G900939919
product price:
$
7.15
/ea
Sold in multiples of 440 for $3,146.00

Key Features

Color
Yellow
Max. Voltage
125V AC, 125V DC
Maximum Voltage
125 V AC/DC
Current
3.5 A
Width
0.444 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-2040557-9
Zoro #
G900939919
UPC #
-
Country of Origin
China

Dimensions

Width
0.444 in
Height
12.45 mm
Length
20.6 mm

Details

Item
PCB Mount Header
Color
Yellow
Max. Voltage
125V AC, 125V DC
Maximum Voltage
125 V AC/DC
Current
3.5 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Glass-Filled Polyester
Connection Material
Copper Alloy
For Use With
Receptacle Housing
Max. Temp.
105°C
Features
Shrouded
Hole Center to Center
2 mm
Contact Type
Tab
Number of Rows
2
Number of Contacts
18
Current Rating
3.5 A
Contact Finish
Pre-Tin Plated
Terminal Finish
Pre-Tin Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
