  11. DYNAMIC D-3 HDR ASSY V 20P

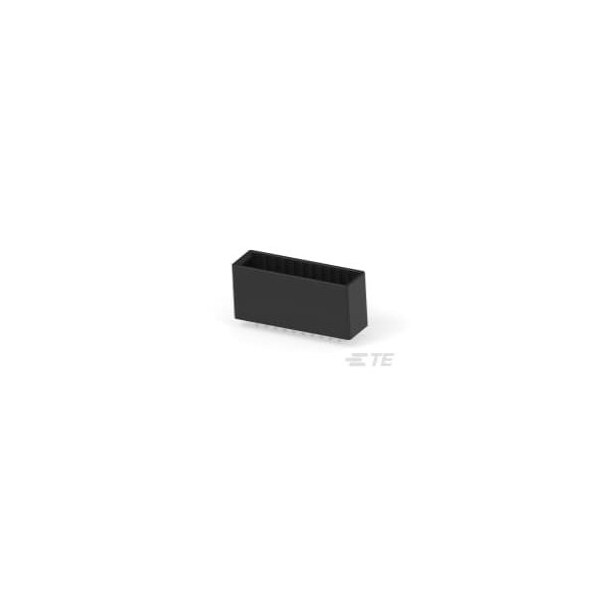

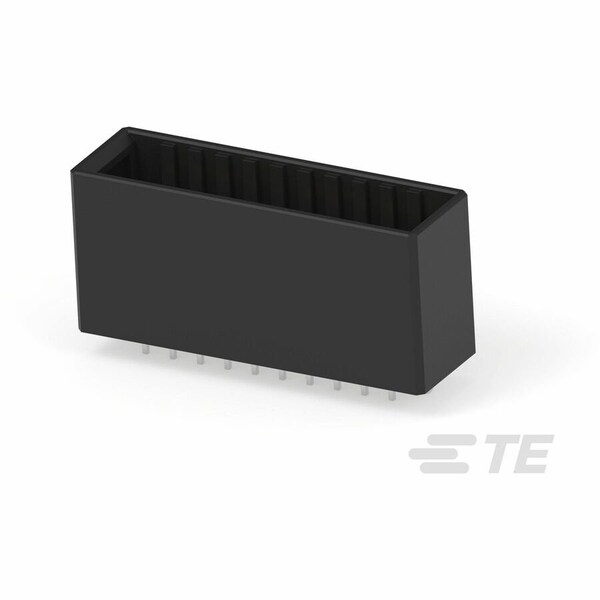

Te Connectivity DYNAMIC D-3 HDR ASSY V 20P 178328-3 - main

DYNAMIC D-3 HDR ASSY V 20P

  • Mfr # 178328-3

  • Zoro # G700938679

product price: $11.59
/ea
Sold in multiples of 10 for $115.90

Key Features

Type
Header
Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
15 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
178328-3
Zoro #
G700938679
UPC #
-
Country of Origin
China

Dimensions

Width
0.568 in
Height
21.6 mm
Length
1.9 in

Details

Item
Connector
Type
Header
Color
Black
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Current
15 A
Series
3000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Features
Shrouded
Terminal Type
Through Hole - Solder
Green Environmental Attribute
Halogen Free
Connector Type
Header
Max. Temp.
105°C
For Use With
Receptacle Housing
Hole Center to Center
0.149 in
Material
Glass-Filled Polyester
Number of Contacts
20
Contact Type
Tab
Number of Rows
2
Current Rating
15 A
Contact Finish
Gold Plated
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Termination Style
Through Hole - Solder
