Shop TE CONNECTIVITY

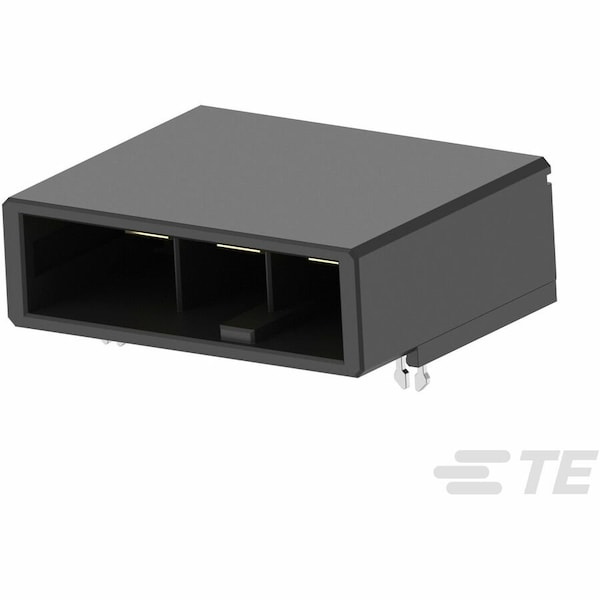

DYNAMIC D-5200 HDR H ASSY 3P

  • Mfr # 1-353081-2

  • Zoro # G100937050

product price:
$
13.29
/ea
Sold in multiples of 12 for $159.48

Key Features

Color
Black
Max. Voltage
630V AC/DC
Maximum Voltage
630 V AC/DC
Current
30 A
Series
5000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-353081-2
Zoro #
G100937050
UPC #
-
Country of Origin
China

Dimensions

Width
1-1/4 in
Height
13.9 mm
Length
1.55 in

Details

Item
Connector
Color
Black
Max. Voltage
630V AC/DC
Maximum Voltage
630 V AC/DC
Current
30 A
Series
5000
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Solder
Features
Shrouded
Connector Type
Header
Hole Center to Center
0.4 in
Max. Temp.
105°C
For Use With
Receptacle Housing
Material
Glass-Filled Polyester
Green Environmental Attribute
Halogen Free
Number of Rows
1
Contact Type
Tab
Current Rating
30 A
Contact Finish
Gold Plated
Number of Contacts
3
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
