Shop TE CONNECTIVITY

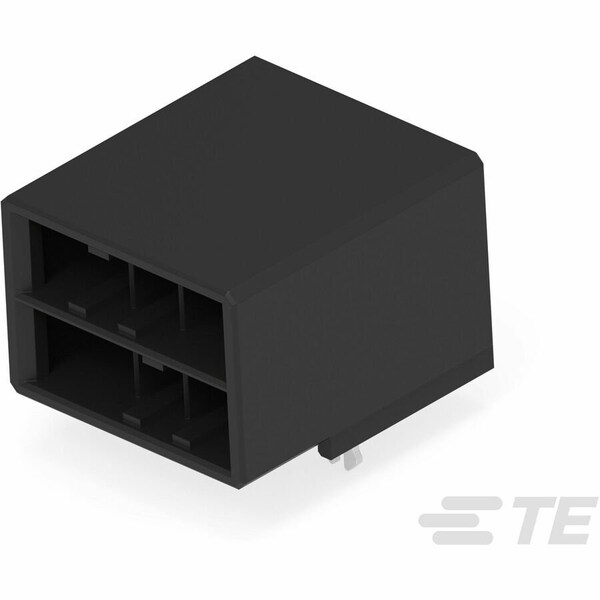

DYNAMIC D3200M HDR H 6P ASSY

  • Mfr # 9-178139-2
  • Zoro # G500940223
product price:
$
6.15
/ea
Sold in multiples of 1000 for $6,150.00

Key Features

Color
Black
Max. Voltage
600V AC, 600V DC
Maximum Voltage
600 V AC/DC
Current
9.5 A
Standards
CSA Certified; UL E28476; UL Recognized
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9-178139-2
Zoro #
G500940223
UPC #
-
Country of Origin
China

Dimensions

Height
18.47 mm
Length
24.16 mm
Contact Plating Thickness
0.38 µm

Details

Item
PCB Mount Header
Color
Black
Max. Voltage
600V AC, 600V DC
Maximum Voltage
600 V AC/DC
Current
9.5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Features
Shrouded
Connection Material
Copper Alloy
For Use With
Receptacle Housing
Max. Temp.
105°C
Hole Center to Center
5.08 mm
Material
Glass-Filled Polyester
Number of Rows
2
Contact Type
Tab
Current Rating
9.5 A
Number of Contacts
6
Contact Finish
Gold Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated

Documents & Resources
