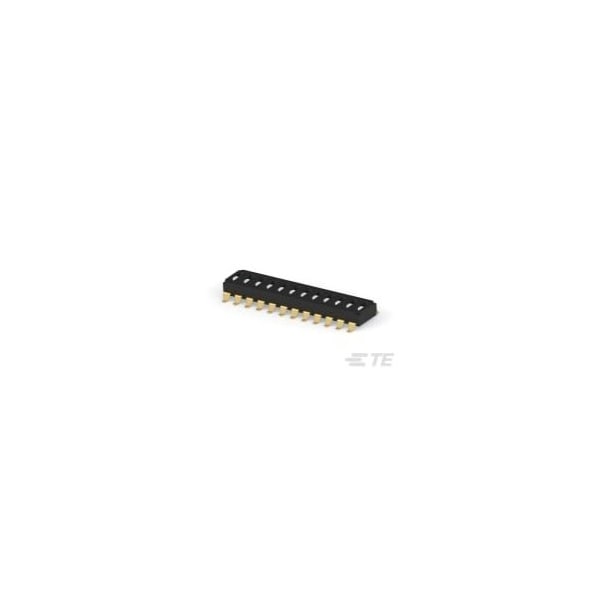

END STACK DIP 12P G RECESS T&R
Mfr # 5-2319848-3
Zoro # G800980011
product price:Â
$
3.25
/ea
Sold in multiples of 900 for $2,925.00
Key Features
Height
.134 in
Length
1.196 in
Product Type
Switch
Voltage Rating
24 VDC
Actuator Color
White
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5-2319848-3
- Zoro #
- G800980011
- UPC #
- -
- Country of Origin
- China
Dimensions
- Height
- .134 in
- Length
- 1.196 in
Details
- Product Type
- Switch
- Voltage Rating
- 24 VDC
- Actuator Color
- White
- Centerline
- .1 in
- Solder Tail Contact Plating
- Gold Flash over Nickel
- Operating Temperature Range
- -20 to 85°C
- Configuration (Pole-Throw)
- Single Pole - Single Throw
- Mounting Type
- Surface Mount
- Sealed
- No
- Mounting Angle
- Vertical
- Contact Mating Area Plating Material
- Gold Flash
- Number of Positions
- 12
- Housing Color
- Black
- Number of Switches
- 12
- Switch Type
- DIP Switch
- Housing Material
- High Temperature Nylon
- Shunt Type
- DIP
