Shop TE CONNECTIVITY

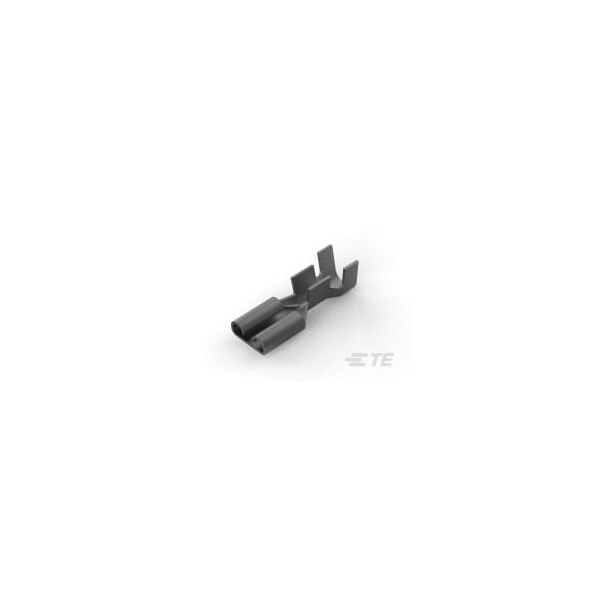

FASTON 250 RECEPTACLE 14-10 AWG TPBR

  • Mfr # 61227-1

  • Zoro # G900966298

product price:  $0.28
/ea
Sold in multiples of 341 for $95.48

Key Features

Wire Size
2.08-5.26 mm2
Overall Length
.815 in
Terminal Type
Receptacle
Fully Insulated
No
CSA Certified
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
61227-1
Zoro #
G900966298
UPC #
-
Country of Origin
United States

Dimensions

Wire Size
2.08-5.26 mm2
Overall Length
.815 in
Receptacle Stock Thickness
.018 in
Accepts Wire Insulation Diameter Range
.15 - .2 in
Wire Insulation Diameter (Max)
.2 in
Mating Tab Thickness
.032 in
Mating Tab Width
.25 in
Plating Thickness
80 µin

Details

Terminal Type
Receptacle
Fully Insulated
No
CSA Certified
Yes
Wire Insulation Support
With
Discrete Wire Type
Stranded
Crimp Type
F-Crimp
Terminates To
Wire & Cable
Line
Premier
Disconnect Type
Quick Connect
Plating Material
Tin
Connection Capacity
Single
Contact Base Material
Brass
Barrel Type
Open
FASTON
Yes
Terminal & Splice Style
Receptacle
Terminal Orientation
Straight
Insertion Force
Normal
UL Rating
Listed
Wire/Cable Type
Discrete Wire
Mating Retention Type
Dimple

Documents & Resources
