  13. Flange Mount, Panel Mount, Plug-In Relay, 20 A, Solder, Quick Connect

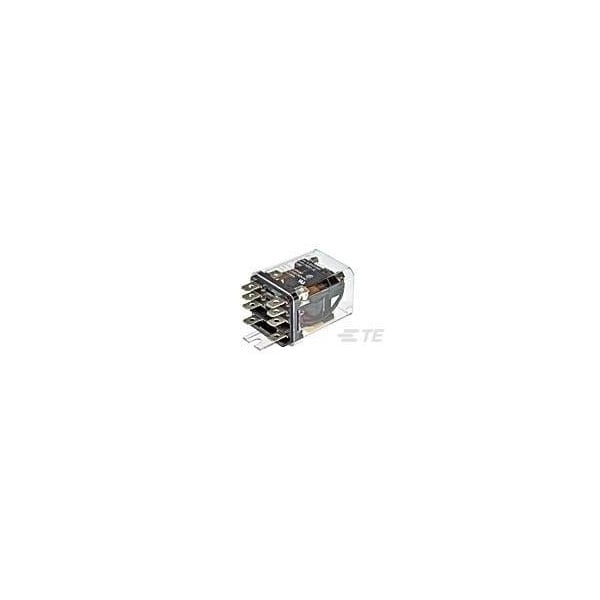

Te Connectivity Flange Mount, Panel Mount, Plug-In Relay, 20 A, Solder, Quick Connect 6-1393114-6 - main

Flange Mount, Panel Mount, Plug-In Relay, 20 A, Solder, Quick Connect

  • Mfr # 6-1393114-6

  • Zoro # G300975708

product price: $267.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Flange Mount, Panel Mount
Electrical Connection
Solder, Quick Connect
Coil Voltage
24V AC
Current Rating
20 A
Contact Rating (AC)
20 A @ 240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6-1393114-6
Zoro #
G300975708
UPC #
-
Country of Origin
Mexico

Dimensions

Product Width
1.394 in
Length Class (Mechanical)
35 to 40 mm
Product Length
1.5 in
Product Height
2.461 in
Width Class (Mechanical)
30 to 40 mm

Details

Item
Plug-In Relay
Mounting Style
Flange Mount, Panel Mount
Electrical Connection
Solder, Quick Connect
Coil Voltage
24V AC
Current Rating
20 A
Contact Rating (AC)
20 A @ 240V AC
Contact Material
AgCdO
Coil Special Features
UL Coil Insulation Class B
Insulation Initial Dielectric Between Open Contacts
1200 Vrms
Contact Arrangement
2 Form C (CO)
Coil Resistance
72 Ω
Insulation Initial Dielectric Between Coil & Contact Class
3500 to 4000 V
Insulation Initial Dielectric Between Adjacent Contacts
3750 Vrms
Contact Limiting Continuous Current
20 A
Contact Limiting Making Current
20 A
Environmental Ambient Temperature Class
0 to 50°C
Contact Current Rating (Max)
20 A
Contact Number of Poles
2
Operating Temperature Range
-45 to 45°C
Insulation Initial Resistance
100 MΩ
Contact Voltage Rating
240 VAC
Contact Current Class
16 A, 10 to 20 A
Environmental Ambient Temperature (Max)
45°C
Environmental Category of Protection
RTI
Actuating System
AC
Contact Limiting Short-Time Current
20 A
Coil Power Rating Class
2 to 3 VA
Insulation Initial Dielectric Between Contacts & Coil
3750 Vrms
Power Relay Type
Industrial Panel Plug-In
Contact Switching Load (Min)
300mA @ 12V
Coil Magnetic System
Monostable, AC
Contact Limiting Breaking Current
20 A
Coil Power Rating AC
2.8 VA
