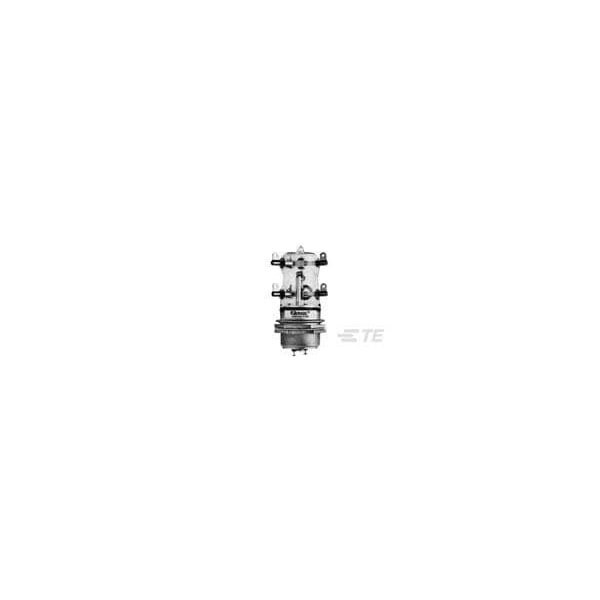

H-16C=RELAY VACUUM DPDT
Mfr # 1-1618273-5
Zoro # G700974042
product price:Â $5,210.99
/ea
Free Shipping & Returns
Key Features
Contact Current Rating
30 A
Contact Arrangement
1 Form B, SPST-NC, 1 N/C, 2 Form C, DPDT, 2 C/O, 1 Form A, SPST-NO, 1 NO, 1 Form C, SPDT, 1 C/O
Relay Type
High Voltage
Coil Resistance
120 Ω
Coil Voltage Rating
26.5 VDC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1-1618273-5
- Zoro #
- G700974042
- UPC #
- -
- Country of Origin
- United States
Details
- Contact Current Rating
- 30 A
- Contact Arrangement
- 1 Form B, SPST-NC, 1 N/C, 2 Form C, DPDT, 2 C/O, 1 Form A, SPST-NO, 1 NO, 1 Form C, SPDT, 1 C/O
- Relay Type
- High Voltage
- Coil Resistance
- 120 Ω
- Coil Voltage Rating
- 26.5 VDC
- Power Switching
- No, Make Only, Yes
- RF Rated
- Yes
- Product Type
- Relay
- Voltage (Max)
- 5000 VDC, 3500 VDC, 2200 VDC, 7500 VDC, 35000 VDC, 25000 VDC, 1800 VDC, 15000 VDC, 70000 VDC, 20000 VDC, 30000 VDC, 8000 VDC, 10000 VDC, 50000 VDC, 12000 VDC
- Economizer
- Without
- High Voltage Connection (Coil)
- Turret Terminals
- High Voltage Connection (Power)
- Screw Terminals
- Termination Style
- Turret Terminals
- Contact Voltage Rating
- 12 kVDC
- Mounting Type
- Threaded
