  6. IDC LOW PRO HDR 50P RA LG LAT BLK

This item is Discontinued.

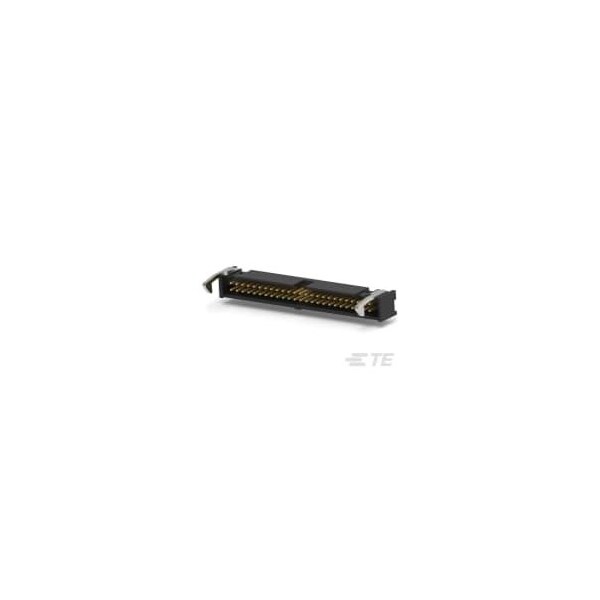

Te Connectivity IDC LOW PRO HDR 50P RA LG LAT BLK 1-1761607-5

IDC LOW PRO HDR 50P RA LG LAT BLK (Discontinued)

  • Mfr # 1-1761607-5
  • Zoro # G100937029
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1761607-5
Zoro #
G100937029
UPC #
-
Country of Origin
China

Dimensions

Height
9.19 mm
Length
2.8 in
Contact Plating Thickness
0.762 µm

Details

Item
Connector
Type
Header
Color
Black
Insulation Material
PBT
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Connector Type
Header
Features
With Daisy Chain and Ejection Latches
Hole Center to Center
2.54 mm
Max. Temp.
105°C
Connection Material
Phosphor Bronze
Terminal Type
Through Hole
Material
PBT
For Use With
AMP-Latch Receptacle
Contact Finish
Gold Flash over Palladium Nickel
Current Rating
1 A
Contact Type
Pin
Number of Rows
2
Number of Contacts
50
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
