Shop TE CONNECTIVITY

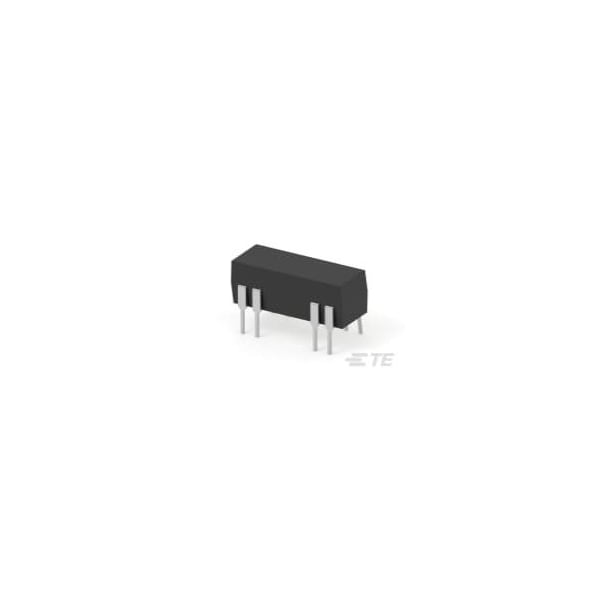

JWD-171-28=REED RELAYS

  • Mfr # 1-1393771-9

  • Zoro # G300973353

product price:  $20.75
/ea
Sold in multiples of 8 for $166.00

Key Features

Coil Voltage
24V DC
Power Consumption - Relay
50 to 288 mW
Body Depth - Relay
0.77 in
Features
Monostable, DC Magnetic System; UL Coil Insulation, Coil Suppression Diode; Reed Contacts
Body Height - Relay
0.315 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1393771-9
Zoro #
G300973353
UPC #
-
Country of Origin
United States

Dimensions

Body Depth - Relay
0.77 in
Body Height - Relay
0.315 in
Body Width - Relay
0.3 in

Details

Item
Relay
Coil Voltage
24V DC
Power Consumption - Relay
50 to 288 mW
Features
Monostable, DC Magnetic System; UL Coil Insulation, Coil Suppression Diode; Reed Contacts
Protection Category
RTIII
Coil Resistance
2200 Ohm
Dielectric Strength
500 Vrms Between Adjacent Contacts; 0 to 500 V Between Coil/Contact Class; 250 Vrms Between Open Contacts
Operating Temp. Range
-35 to 85°C
Contact Form
DPST-NO
Number of Pins
14
Base Shape
Square
Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Current Rating
500 mA
Contact Rating (DC)
0.5 A @ 20V
