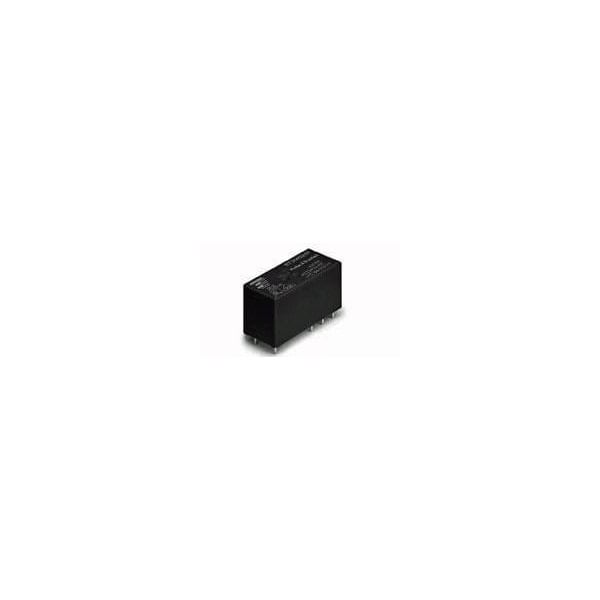

Te Connectivity Power Relay, PCB, Socket, PCB, Plug-in, 24V DC 2-1419108-6 - main

Power Relay, PCB, Socket, PCB, Plug-in, 24V DC

  • Mfr # 2-1419108-6

  • Zoro # G701026573

product price:  $7.35
/ea
Sold in multiples of 20 for $147.00

Key Features

Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Coil Voltage
24V DC
Power Consumption - Relay
400 mW
Contact Material
AgNi90/10
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-1419108-6
Zoro #
G701026573
UPC #
-
Country of Origin
China

Details

Item
General Purpose Power Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Coil Voltage
24V DC
Power Consumption - Relay
400 mW
Contact Material
AgNi90/10
Features
UL Coil Insulation Class F
Number of Poles
1
Contact Limiting Breaking Current
12A
Contact Limiting Continuous Current
12A
Insulation Creepage
.394 in
Switching Voltage
400 VAC
Insulation Clearance
.394 in
Contact Rating
0A
Coil Type
Monostable, DC
Contact Voltage Rating
250 VAC
Contact Limiting Making Current
25 A
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Protection Category
RTIII
Coil Resistance
1440 Ω
Operating Temp. Range
85°C
Current Rating
12A
Base Shape
Square
Number of Pins
8
Contact Rating (AC)
12 A @ 250V
Contact Form
SPDT

Description
