Shop TE CONNECTIVITY

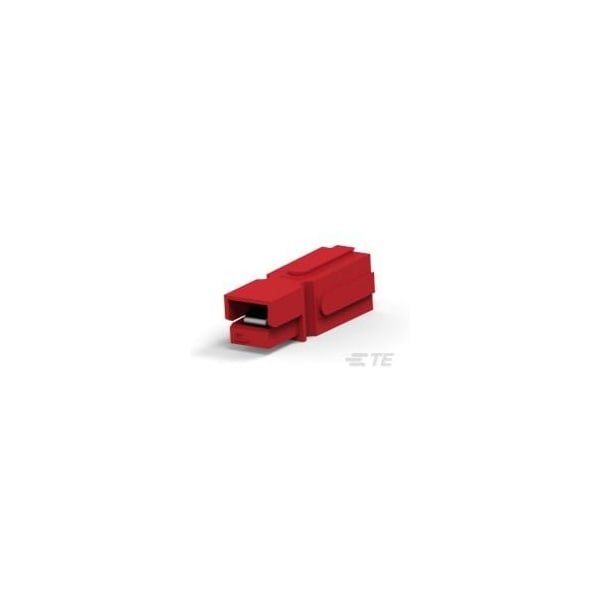

KIT 6AWG RED

  • Mfr # 1445716-5

  • Zoro # G301037252

product price:  $7.95
/ea
Sold in multiples of 10 for $79.50

Key Features

Type
Connector Assembly
Number of Contacts
1
Color
Red
Insulation Material
Polycarbonate
Maximum Voltage
600 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1445716-5
Zoro #
G301037252
UPC #
-
Country of Origin
United States

Dimensions

Length
48 mm
Max. Single Wire Size
14 mm2
Min. Single Wire Size
13 mm2
Width
0.675 in
Height
17.15 mm
Contact Plating Thickness
1.27 µm
Maximum Single Wire Size
112 AWG
Minimum Single Wire Size
16 AWG

Details

Item
Connector Assembly
Type
Connector Assembly
Number of Contacts
1
Color
Red
Insulation Material
Polycarbonate
Maximum Voltage
600 V AC/DC
Current
75 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Polycarbonate
Standards
UL E28476; UL Recognized
Max. Temp.
105°C
Wire Type
Stranded
Number of Ports
1
Terminal Type
Crimp
Max. Voltage
600V AC/DC
Application
Power
Contact Finish
Silver Plated
Current Rating
75 A
Contact Type
Pin/Socket
Number of Rows
1
Connector Terminates To
Wire & Cable
Terminal Finish
Silver Plated
Flammability Rating
UL 94 V-0
Maximum Conductors
1
Termination Style
Crimp
