This item is Discontinued.

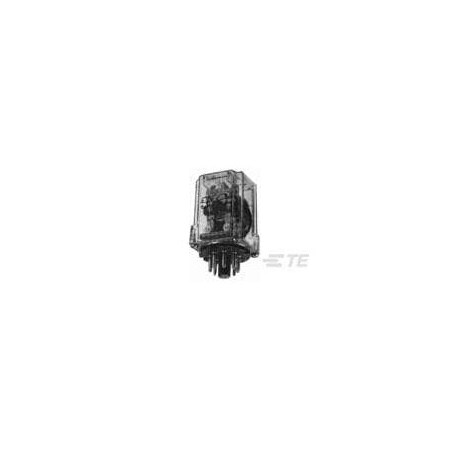

Te Connectivity Krp-14Ag-120=Ka/Kb/Kc/Kr 9-1393101-6

Krp-14Ag-120=Ka/Kb/Kc/Kr (Discontinued)

  • Mfr # 9-1393101-6
  • Zoro # G305930597
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9-1393101-6
Zoro #
G305930597
UPC #
-
Country of Origin
United States

Dimensions

Width Class (Mechanical)
30 to 40 mm
Length Class (Mechanical)
35 to 40 mm
Product Width
1.405 in
Product Height
2 in
Height Class (Mechanical)
50 to 60 mm
Product Length
1.406 in

Details

Contact Material
AgCdO
Power Relay Type
Industrial Panel Plug-In
Insulation Initial Dielectric Between Open Contacts
1000 Vrms
Environmental Ambient Temperature Class
50 to 70°C
Insulation Initial Resistance
1000 MΩ
Contact Current Class
16 A, 5 to 10 A
Contact Voltage Rating
240 VAC
Coil Resistance
2250 Ω
Coil Voltage Rating
120 VAC
Coil Power Rating Class
2 to 3 VA
Environmental Ambient Temperature (Max)
55°C
Contact Current Rating (Max)
10A
Insulation Initial Dielectric Between Coil & Contact Class
500 to 1000 V
Terminal Type
Plug-In
Operating Temperature Range
-45 to 55°C
Contact Arrangement
3 Form C (CO)
Insulation Initial Dielectric Between Adjacent Contacts
1000 Vrms
Coil Power Rating AC
2.1 VA
Contact Switching Load (Min)
300mA @ 12V
Environmental Category of Protection
RTI
Coil Magnetic System
Monostable, AC
Coil Special Features
UL Coil Insulation Class B
Actuating System
AC
Relay Mounting Type
Socket
Contact Number of Poles
3
Insulation Initial Dielectric Between Contacts & Coil
1000 Vrms
