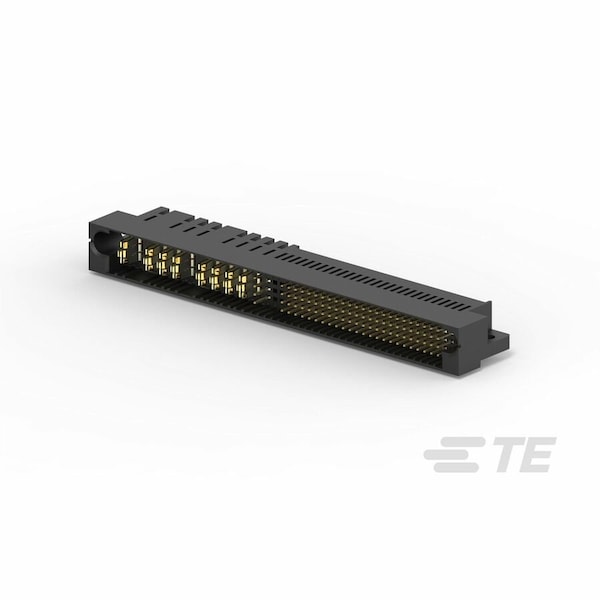

MBXL R/A HDR 8P+112S
- Mfr # 1892222-7
- Zoro # G000937914
product price:Â
$
33.19
/ea
Sold in multiples of 11 for
$365.09
Key Features
Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
60V AC, 60V DC
Maximum Voltage
60 V AC/DC
Application
Power, Signal
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1892222-7
- Zoro #
- G000937914
- UPC #
- -
- Country of Origin
- China
Dimensions
- Contact Plating Thickness
- 0.76 µm
Details
- Item
- Header
- Color
- Black
- Insulation Material
- High Temperature Thermoplastic
- Max. Voltage
- 60V AC, 60V DC
- Maximum Voltage
- 60 V AC/DC
- Application
- Power, Signal
- Current
- 42 A
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Hole Center to Center
- 9.52 mm; 2.54 mm; 5.08 mm
- Max. Temp.
- 105°C
- Material
- High Temperature Thermoplastic
- Terminal Type
- Through Hole - Solder
- Contact Type
- Pin
- Current Rating
- 42 A
- Number of Contacts
- 120
- Contact Finish
- Noble Metal Plated
- Connector Terminates To
- Printed Circuit Board
- Flammability Rating
- UL 94 V-0
- Terminal Finish
- Tin Plated
