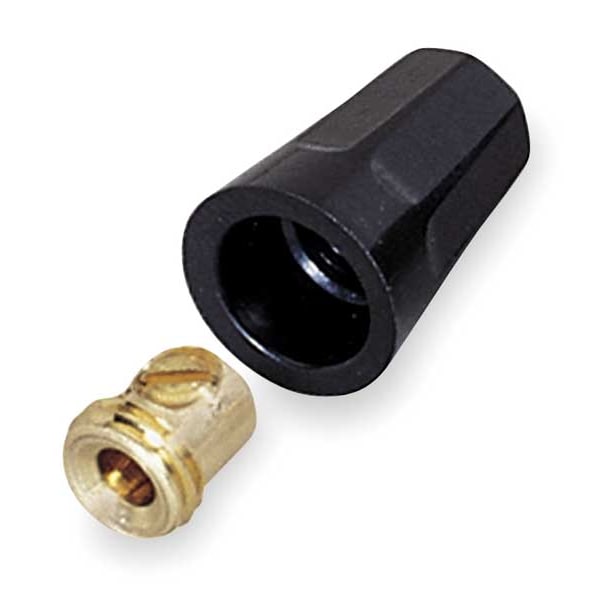

Mechanical Lug, Black, 300 V, 100 PK
Mfr # 30-210
Zoro # G0890933
product price:Â
$
96.99
/pk 100, $0.97/ea
Key Features
Type
Splice
No. of Conductors
1
Color
Black
Maximum Wire Size
10 AWG
Min. Conductor Size
20 AWG Solid
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 30-210
- Zoro #
- G0890933
- UPC #
- 783250302109
- Country of Origin
- United States
- Item
- Mechanical Lug
- Type
- Splice
- No. of Conductors
- 1
- Color
- Black
- Maximum Voltage
- 600 V
- Minimum Wire Combination
- (1) 20 AWG with (1) 22 AWG
- Maximum Wire Combination
- (2) 14 AWG with (1) 16 AWG
- Maximum Operating Temperature
- 150 Degrees F
- Material
- Brass
- Head Style
- Slotted
- Body Material
- Brass
- Standards
- CSA Certified, UL Listed, UL 486C
- Inspection Hole
- Yes
- Number of Terminations
- 1
- For Conductor Material
- Copper
- Special Features
- Eliminates Need for Restriping Wire Each Time the Connection is Disturbed, Permits Fast Visual Inspection of Splice
- Number of Conductors
- 1
- Max. Voltage
- 300
- Minimum Wire Gauge
- 22 AWG
- Maximum Wire Gauge
- 10 AWG
- Contact Finish
- Brass
- UL 94 Flammability Rating
- V-0
- Connector Type
- Set Screw
Description
Twist-On Wire Connectors, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 10 AWG, For Stud Size 1/8 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.13 in, Hole Spacing Not Applicable, Body Material Brass, Maximum Operating Temperature 150 Degrees F, Maximum Voltage 300 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width Not Applicable, Tongue Thickness Not Applicable
