  11. MICRO MNL HDR ASSY S/ROW LF

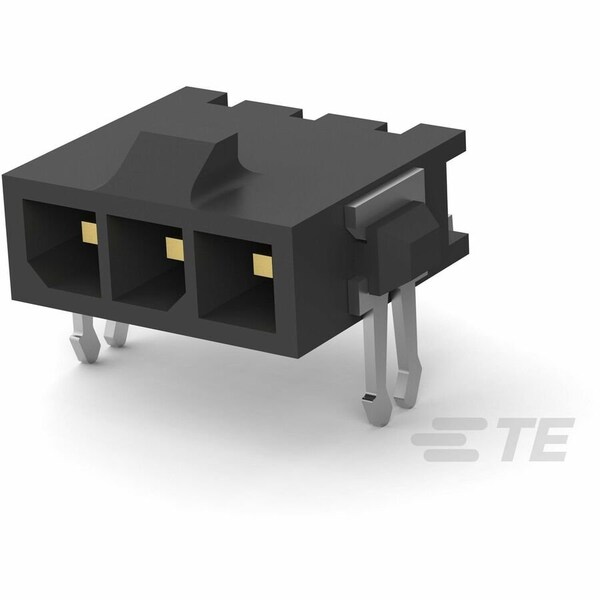

Te Connectivity MICRO MNL HDR ASSY S/ROW LF 2-1445099-3 - main

MICRO MNL HDR ASSY S/ROW LF

  • Mfr # 2-1445099-3

  • Zoro # G400939082

product price: $1.45
/ea
Sold in multiples of 215 for $311.75

Key Features

Color
Black
Insulation Material
High Temperature Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2-1445099-3
Zoro #
G400939082
UPC #
-
Country of Origin
China

Dimensions

Max. Insulation Dia.
1.52 in
Length
13 mm
Contact Plating Thickness
0.76 µm

Details

Item
Header
Color
Black
Insulation Material
High Temperature Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
Current
5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
High Temperature Nylon
Terminal Type
Surface Mount
Hole Center to Center
3 mm
Max. Temp.
105°C
For Use With
Plug Housing
Number of Contacts
3
Contact Finish
Gold Plated
Current Rating
5 A
Number of Rows
1
Contact Type
Pin
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
