Shop TE CONNECTIVITY

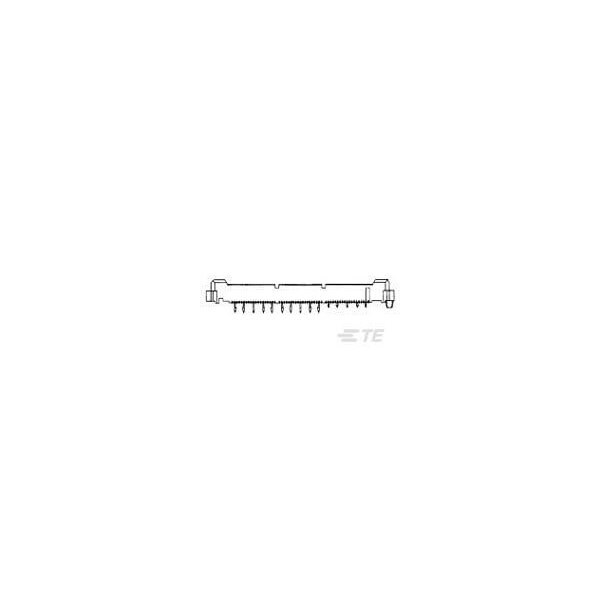

MICT 495PLUG 114 ASSY .025 REC

  • Mfr # 1-767005-0

  • Zoro # G100945543

product price:  $67.49
/ea
Sold in multiples of 10 for $674.90

Key Features

Insulation Material
Liquid Crystal Polymer
Max. Voltage
30V AC; 3V DC
Maximum Voltage
30 V AC/3 V DC
Application
Signal
Current
11.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-767005-0
Zoro #
G100945543
UPC #
-
Country of Origin
United States

Dimensions

Width
0.208 in
Height
12.446 mm
Length
50.8 mm
Contact Plating Thickness
0.76 µm

Details

Item
PCB Mount Header
Insulation Material
Liquid Crystal Polymer
Max. Voltage
30V AC; 3V DC
Maximum Voltage
30 V AC/3 V DC
Application
Signal
Current
11.5 A
Series
Mictor
Standards
CSA Certified; UL E28476; UL Listed
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
Connection Material
Copper Alloy
Material
Liquid Crystal Polymer
Hole Center to Center
0.64 mm
Max. Temp.
125°C
For Use With
Receptacle Assembly
Terminal Type
Hybrid Surface Mount
Number of Rows
2
Number of Contacts
114
Current Rating
11.5 A
Contact Type
Pin
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin-Lead
Flammability Rating
UL 94 V-0
