  9. MJ ASSY 8POS R/A SHLD CAT5

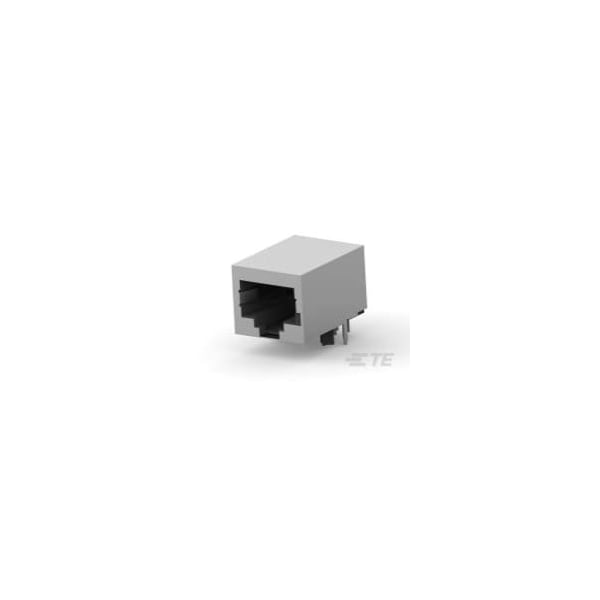

Te Connectivity MJ ASSY 8POS R/A SHLD CAT5 6116526-1 - main

MJ ASSY 8POS R/A SHLD CAT5

  • Mfr # 6116526-1

  • Zoro # G501017627

product price: $4.69
/ea
Sold in multiples of 17 for $79.73

Key Features

Number of Positions
8
Shielded
Yes
Centerline (Pitch)
.04 in
UL Flammability Rating
UL 94V-0
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6116526-1
Zoro #
G501017627
UPC #
-
Country of Origin
China

Dimensions

PCB Tail Length
.14 in
Connector Height
.537 in
PCB Thickness (Recommended)
.062 in
Contact Mating Area Plating Material Thickness
50µin

Details

Number of Positions
8
Shielded
Yes
Centerline (Pitch)
.04 in
UL Flammability Rating
UL 94V-0
Modular Jacks & Plugs Products
RJ Type Jacks & Plugs
Shield Material
Copper Alloy
Connector Mounting Type
Board Mount
Shield Plating Material
Tin over Nickel
Keyed
No
Performance Category
Cat 5
Circuit Application
Signal
Operating Temperature Range
-40 to 185°F
Panel Mount Feature
With
Contact Underplating Material
Nickel
Contact Current Rating (Max)
.2 A, 1.5 A
Connector Contact Density
Standard
Port Matrix Configuration
1 x 1
Connector Style
Jack
Termination Method to Printed Circuit Board
Through Hole - Solder
Modular Jack & Plug Interface Type
RJ45
Entry Location
Side
Housing Material
Nylon
Profile
Standard
Port Configuration
Single Port
Number of PCB Ground Tabs
2
Contact Mating Area Plating Material
Gold
PCB Contact Termination Area Plating Material
Tin
PCB Mount Orientation
Right Angle
Number of Contacts Loaded
8
Connectors & Connector Components Type
Connector
Connector Product Type
Connector Assembly
Status Indicator
None
PCB Ground Tab Location
-3.05 mm, .12 in
Connector & Contact Terminates To
Printed Circuit Board
Contact Base Material
Phosphor Bronze
Latch Orientation
Standard - Latch Down
Grounding Options
PCB Ground
Housing Color
Black
