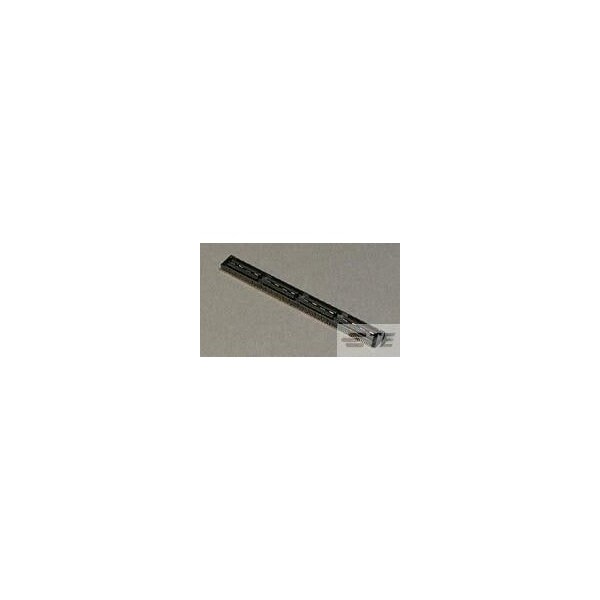

MSB0.80RC-ASY112DP GP F VCTY
Mfr # 3-1658043-4
Zoro # G101067947
product price: $18.19
/eaSold in multiples of 4 for $72.76
Key Features
Max. Voltage
125V AC
Max. Temp.
125°C
Application
Signal
Series
Mictor SB
Height
3.05 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
3-1658043-4
Zoro #
G101067947
UPC #
-
Country of Origin
Mexico
Dimensions
Height
3.05 mm
Contact Plating Thickness
0.12 µm
Details
Item
PCB Mount Receptacle
Max. Voltage
125V AC
Max. Temp.
125°C
Application
Signal
Series
Mictor SB
Material
Liquid Crystal Polymer
Features
With Boss
Connection Material
Phosphor Bronze
Current Rating
1.25 A; 9.5 A
Contact Type
Socket
Number of Rows
2
Terminal Finish
Gold Plated
Hole Center to Center
0.8 mm
Terminal Type
Surface Mount
Number of Contacts
112
Connector Terminates To
Printed Circuit Board
Contact Finish
Select Gold Flash
