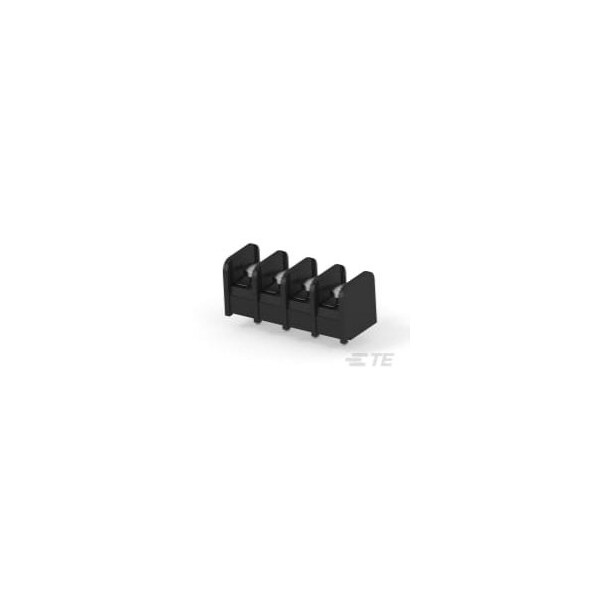

NC6-P107-04=NC6 ASSEMBLY

  • Mfr # 1437664-6
  • Zoro # G500951663
product price:
$
3.75
/ea
Sold in multiples of 33 for $123.75

Key Features

Color
Black
Voltage
300 V
Length
1.559 in
Product Type
Barrier Strip
Number of Levels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1437664-6
Zoro #
G500951663
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Length
1.559 in
Screw Size
11841

Details

Color
Black
Voltage
300 V
Product Type
Barrier Strip
Number of Levels
1
Mounting Options
None
Terminal Plating Material
Tin
Mounting Bushing
With
Number of Rows
1
Barrier Strip Style
Dual Barrier
Screw Plating Material
Zinc
Current Rating (Max)
20 A
Mounting Angle
Vertical
Current Rating
20 A
UL Flammability Rating
UL 94V-0
Top Hardware
Binding Combo Head
Screw Head Type
Combo Phil-Slot
Block Style
Flat
Wire Range
22 to 12 AWG
Screw Material
Steel
Connector & Contact Terminates To
Printed Circuit Board
Housing Material
Polyamide
Mounting Insert
Without
Profile
Low
Bottom Termination Style
Printed Circuit Pin
Mounting Ears
Without
Quick Connect Blade Style
90°, One Sided
Centerline (Pitch)
.375 in
Number of Positions
4
Operating Temperature Range
-40 to 105 °C
Terminal Material
Copper Alloy
