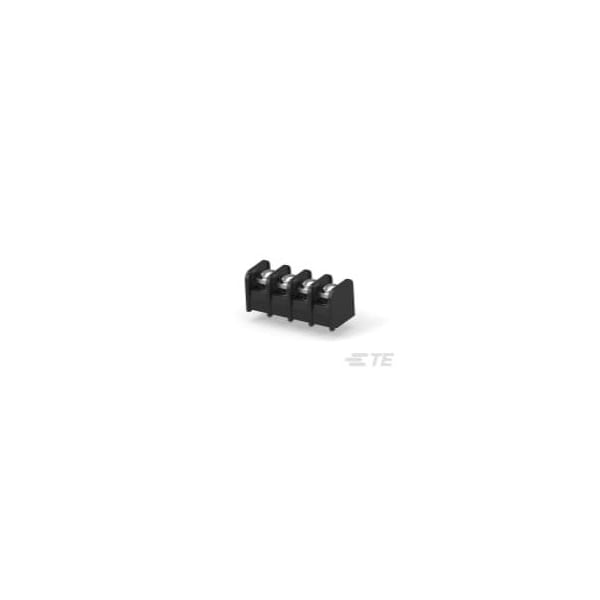

Te Connectivity NC6-P108-04=7180XX002/30 3-1437664-3 - main

NC6-P108-04=7180XX002/30

  • Mfr # 3-1437664-3

  • Zoro # G700951814

product price: $2.45
/ea
Sold in multiples of 35 for $85.75

Key Features

Length
1.561 in
Color
Black
Voltage
300 V
Mounting Options
None
Block Style
Flat
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-1437664-3
Zoro #
G700951814
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Length
1.561 in
Screw Size
11841

Details

Color
Black
Voltage
300 V
Mounting Options
None
Block Style
Flat
Mounting Angle
Vertical
Mounting Bushing
With
Current Rating
20 A
Operating Temperature Range
-40 to 221 °F
Screw Material
Steel
Number of Positions
4
Number of Rows
1
Top Hardware
Wire Clamp Combo Head
Number of Levels
1
Mounting Ears
Without
Mounting Insert
Without
Connector & Contact Terminates To
Printed Circuit Board
Profile
Low
Current Rating (Max)
20 A
UL Flammability Rating
UL 94V-0
Bottom Termination Style
Printed Circuit Pin
Terminal Plating Material
Tin
Barrier Strip Style
Dual Barrier
Screw Plating Material
Zinc
Product Type
Barrier Strip
Screw Head Type
Wire Clamp Combo Head
Housing Material
Polyamide
Centerline (Pitch)
.375 in
Wire Range
22 to 12 AWG
Terminal Material
Copper Alloy
