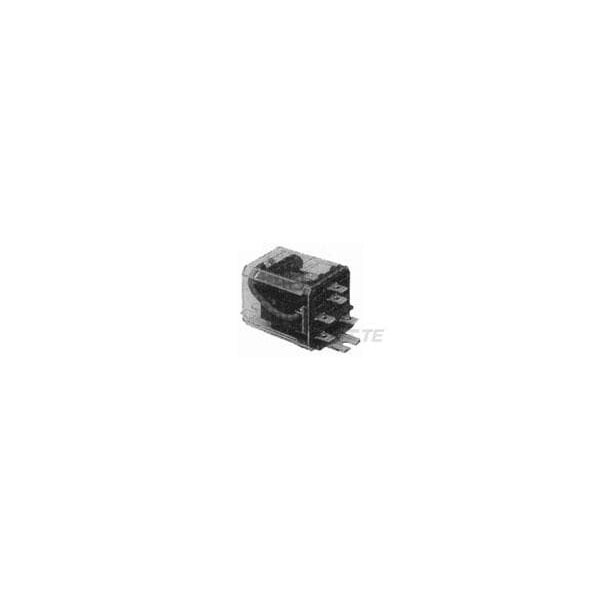

Te Connectivity Panel Mount, Bracket, Plug-In Relay, 20 A, Quick Connect, Solder 6-1393114-9 - main

Panel Mount, Bracket, Plug-In Relay, 20 A, Quick Connect, Solder

  • Mfr # 6-1393114-9

  • Zoro # G200975754

product price: $31.65
/ea
Sold in multiples of 3 for $94.95

Key Features

Mounting Style
Panel Mount, Bracket
Electrical Connection
Quick Connect, Solder
Coil Voltage
120V AC
Current Rating
20 A
Contact Rating (AC)
20 A @ 240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6-1393114-9
Zoro #
G200975754
UPC #
-
Country of Origin
China

Dimensions

Length Class (Mechanical)
40 to 50 mm
Product Height
1.405 in
Height Class (Mechanical)
30 to 40 mm
Product Length
1.97 in
Product Width
1.531 in
Width Class (Mechanical)
30 to 40 mm

Details

Item
Plug-In Relay
Mounting Style
Panel Mount, Bracket
Electrical Connection
Quick Connect, Solder
Coil Voltage
120V AC
Current Rating
20 A
Contact Rating (AC)
20 A @ 240V AC
Contact Material
AgCdO
Coil Magnetic System
Monostable, AC
Power Relay Type
Industrial Panel Plug-In
Insulation Initial Dielectric Between Coil & Contact Class
3500 to 4000 V
Coil Power Rating Class
2 to 3 VA
Environmental Ambient Temperature Class
0 to 50°C
Environmental Ambient Temperature (Max)
45°C
Contact Number of Poles
2
Coil Special Features
UL Coil Insulation Class B
Insulation Initial Dielectric Between Open Contacts
1200 Vrms
Coil Resistance
1700 Ω
Contact Voltage Rating
240 VAC
Actuating System
AC
Insulation Initial Resistance
100 MΩ
Insulation Initial Dielectric Between Adjacent Contacts
3750 Vrms
Operating Temperature Range
-45 to 45°C
Contact Current Rating (Max)
20 A
Contact Switching Load (Min)
300mA @ 12V
Contact Current Class
10 to 20 A, 16 A
Insulation Initial Dielectric Between Contacts & Coil
3750 Vrms
Environmental Category of Protection
RTI
Contact Arrangement
2 Form C (CO)
Coil Power Rating AC
2.9 VA
