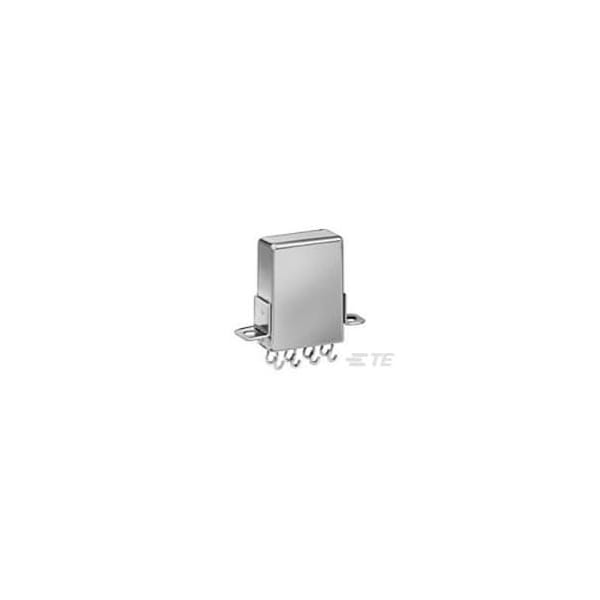

Panel Mount, General Purpose Relay, 3 A, Solder Hook
Mfr # 1617530-1
Zoro # G100973942
product price:Â $185.99
/ea
Sold in multiples of 29 for $5,393.71
Free Shipping & Returns
Key Features
Mounting Style
Panel Mount
Electrical Connection
Solder Hook
Coil Voltage
12.6V DC
Current Rating
3 A
Vibration
20G's, 10 to 2000Hz
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1617530-1
- Zoro #
- G100973942
- UPC #
- -
- Country of Origin
- United States
Details
- Item
- General Purpose Power Relay
- Mounting Style
- Panel Mount
- Electrical Connection
- Solder Hook
- Coil Voltage
- 12.6V DC
- Current Rating
- 3 A
- Vibration
- 20G's, 10 to 2000Hz
- Relay Type
- Military/Aerospace High Performance
- Enclosure Type
- Hermetically Sealed
- Contact Current Rating
- 3A
- Transistor Driver
- Without
- Coil Latching
- Without
- Coil Resistance
- 200 Ω
- Coil Magnetic System
- Non-Polarized, Monostable
- Coil Polarity Protection Diode
- Without
- Coil Power Rating (DC)
- 794 mW
- Actuating System
- DC
- MOSFET Driver
- Without
- Operating Temperature Range
- -65 to 125°C
- Input Voltage
- 12.6 VDC
- Contact Arrangement
- 2 Form C, DPDT, 2 C/O
- Coil Suppression Diode
- Without
- Shock
- 100G's, 6ms
- Contact Rating (DC)
- 3 A @ 28V
- Contact Form
- DPDT
