Shop TE CONNECTIVITY

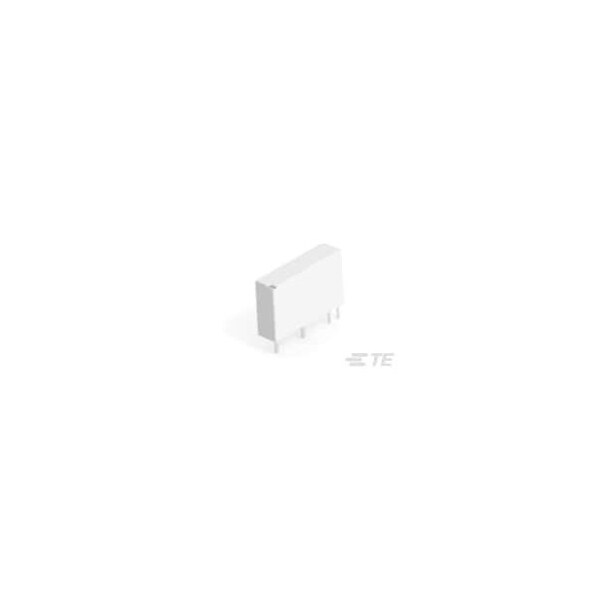

PCB, Power Relay, 3 A, PCB

  • Mfr # 3-1461491-3

  • Zoro # G301016851

product price:  $6.65
/ea
Sold in multiples of 25 for $166.25

Key Features

Mounting Style
PCB
Electrical Connection
Pins
Coil Voltage
12V DC
Current Rating
3 A
Contact Rating (DC)
3 A @ 30V, 5 A @ 30V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-1461491-3
Zoro #
G301016851
UPC #
-
Country of Origin
China

Details

Item
General Purpose Power Relay
Mounting Style
PCB
Electrical Connection
Pins
Coil Voltage
12V DC
Current Rating
3 A
Contact Rating (DC)
3 A @ 30V, 5 A @ 30V
Power Consumption - Relay
120 mW
Number of Poles
1
Contact Material
AgNi
Features
UL Coil Insulation Class F; Bifurcated/Twin Contacts
Contact Limiting Continuous Current
3A
Contact Voltage Rating
250 VAC, 30 VDC
Contact Limiting Making Current
3A
Coil Type
Monostable, DC
Protection Category
RTIII
Insulation Creepage
.138 in
Dielectric Voltage
3000 Vrms Coil and Contact; 750 Vrms Open Contacts
Contact Limiting Breaking Current
3A
Coil Resistance
1200 Ω
Contact Rating
0.125A
Insulation Clearance
.138 in
Switching Voltage
125 VDC, 277 VAC
Operating Temp. Range
70 to 85°C
Contact Rating (AC)
3 A @ 250V, 5 A @ 250V
Base Shape
Square
Contact Form
SPST-NO
