  13. PCB, General Purpose Relay, 6 A, PCB

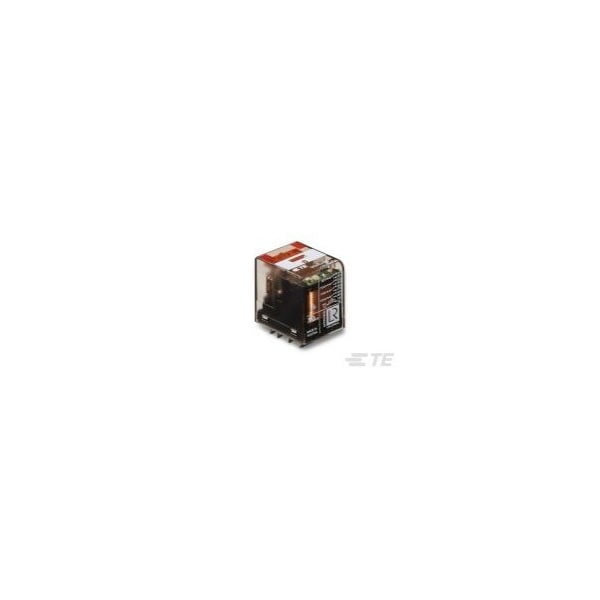

Te Connectivity PCB, General Purpose Relay, 6 A, PCB 3-1415533-1 - main

PCB, General Purpose Relay, 6 A, PCB

  • Mfr # 3-1415533-1

  • Zoro # G801025049

product price: $11.85
/ea
Sold in multiples of 20 for $237.00

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
230V AC
Current Rating
6 A
Contact Rating (AC)
6 A @ 240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3-1415533-1
Zoro #
G801025049
UPC #
-
Country of Origin
Austria

Details

Item
General Purpose Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
230V AC
Current Rating
6 A
Contact Rating (AC)
6 A @ 240V AC
Power Consumption - Relay
1VA
Contact Material
AgNi90/10
Number of Poles
4
Features
Mechanical Indicator; Electrical Indicator, LED
Insulation Creepage
4 mm [ .157 in ]
Contact Limiting Breaking Current
6A
Contact Rating
6A
Switching Voltage
240V AC
Contact Limiting Continuous Current
6A
Contact Limiting Making Current
12A
Insulation Clearance
4 mm [ .157 in ]
Contact Voltage Rating
240V AC
Coil Type
Monostable, AC
Coil Resistance
19465 Ω
Contact Limiting Short-Time Current
300A
Dielectric Voltage
2000 Vrms Adjacent Contacts; 2500 Vrms Coil and Contact; 1200 Vrms Open Contacts
Operating Temp. Range
50 to 70°C
Switching Current
10mA @ 12V
Protection Category
RTII
