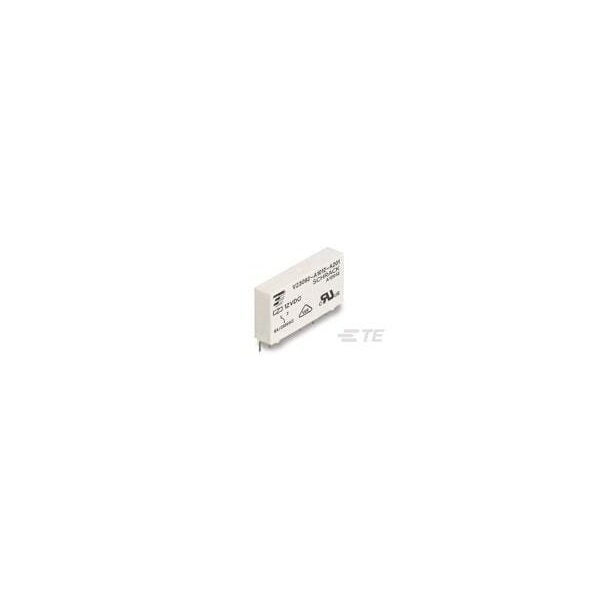

Te Connectivity PCB, PCB Relay, 10 A, PCB 6-1393236-9 - main

PCB, PCB Relay, 10 A, PCB

  • Mfr # 6-1393236-9

  • Zoro # G401034182

product price:  $9.25
/ea
Sold in multiples of 20 for $185.00

Key Features

Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
12V DC
Current Rating
10 A
Power Consumption - Relay
170 mW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6-1393236-9
Zoro #
G401034182
UPC #
-
Country of Origin
Czechia

Details

Item
PCB Relay
Mounting Style
PCB
Electrical Connection
PCB
Coil Voltage
12V DC
Current Rating
10 A
Power Consumption - Relay
170 mW
Number of Poles
1
Contact Material
AgSnO
Switching Voltage
400V AC
Contact Limiting Making Current
10A
Switching Current
100mA @ 12V
Coil Resistance
848 Ω
Contact Limiting Short-Time Current
6A
Contact Limiting Continuous Current
10A
Insulation Creepage
8 mm [ .315 in ]
Contact Rating
6A
Protection Category
RTIII
Coil Type
Monostable, DC
Insulation Clearance
6 mm [ .236 in ]
Contact Voltage Rating
250V AC
Dielectric Voltage
4000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Limiting Breaking Current
6A
Operating Temp. Range
70 to 85°C
Contact Form
SPDT
Contact Rating (AC)
6 A @ 250V

Description
