Shop TE CONNECTIVITY

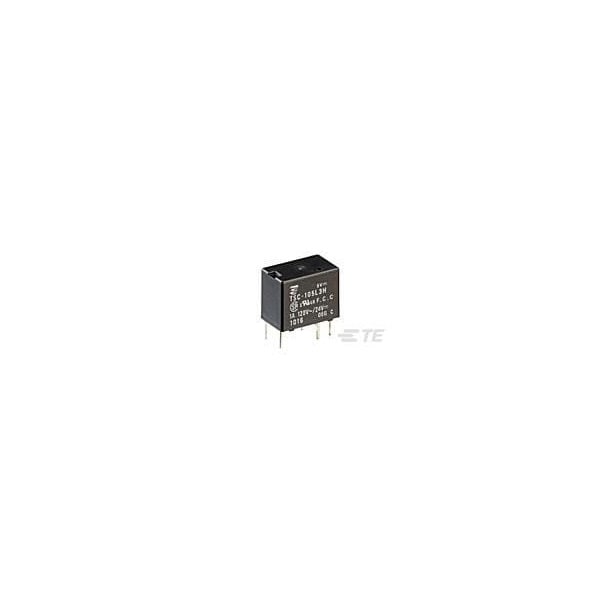

PCB, PCB Relay, 1A, Through Hole

  • Mfr # 1-1419130-8

  • Zoro # G301033827

product price:  $4.39
/ea
Sold in multiples of 35 for $153.65

Key Features

Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Coil Voltage
9V DC
Current Rating
1A
Power Consumption - Relay
150 mW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1419130-8
Zoro #
G301033827
UPC #
-
Country of Origin
Mexico

Details

Item
General Purpose Signal Relay
Mounting Style
PCB
Electrical Connection
PCB - Through Hole
Coil Voltage
9V DC
Current Rating
1A
Power Consumption - Relay
150 mW
Number of Poles
1
Contact Material
Nickel-Titanium Alloy
Features
Sensitive Type
Insulation Clearance
.079 in
Coil Resistance
540 Ω
Dielectric Voltage
1000 Vrms Coil and Contact; 400 Vrms Open Contacts
Contact Limiting Making Current
1A
Operating Temp. Range
-30 to 80°C
Insulation Creepage
.059 in
Switching Voltage
30 VDC, 120 VAC
Protection Category
RTIII
Contact Voltage Rating
24 VDC, 120 VAC
Contact Limiting Short-Time Current
1A
Contact Limiting Continuous Current
1A
Contact Rating
1A
Coil Type
Monostable, AC/DC
Switching Current
1mA @ 1V
Contact Limiting Breaking Current
1A
Contact Rating (DC)
1 A @ 24V
Contact Rating (AC)
1 A @ 120V
Contact Form
SPDT
Base Shape
Square
