- Item

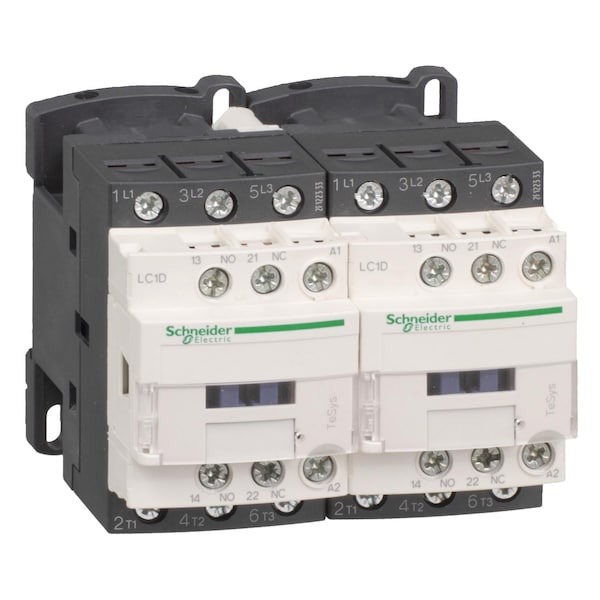

- IEC Magnetic Contactor
- Auxiliary Contact Form
- 1NC/1NO
- Coil Voltage
- 110V DC
- Number of Poles
- 3
- Full Load Amps-Inductive
- 12 A
- Full Load Amps-Resistive
- 25 A
- Reversing Capability
- Reversing
- Terminal Connection Type
- Screw Clamp
- Number of Auxillary Contacts
- 2
- Standards
- CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30
- Series
- LC2D, TeSys, TeSys Deca
- HP @ 3 Phase - 575V
- 10 hp
- Features
- Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar
- Application
- Motor Control, Resistive Load
- IP Rating
- IP20
- Rated Breaking Capacity
- 250 A @ 440V
- Fire Rating
- UL 94 V1
- Mechanical Durability
- 30 Mcycles
- Shock Resistance
- 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
- Max. Operating Watts
- 3 kW (at 220 to 230V AC 50 Hz), 5.5 kW (at 380 to 400V AC 50 Hz), 5.5 kW (at 415 to 440V AC 50 Hz), 7.5 kW (at 500V AC 50 Hz), 7.5 kW (at 660 to 690V AC 50 Hz)
- Switching Current
- 5 mA (Signalling Circuit)
- Control Circuit Voltage Limits
- Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60°C), 1 to 1.25 Uc (at 60 to 70°C)
- Environmental Attributes
- Mercury Free, PVC Free, Pollution Degree 3
- Signalling Circuit Frequency
- 25 to 400 Hz
- Operating Time
- 53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening)
- Overvoltage Category
- CAT III
- Rated Short-Time Withstand Current
- 30 A (at 40°C for 10 min Power Circuit), 61 A (at 40°C for 1 min Power Circuit), 105 A (at 40°C for 10 s Power Circuit), 210 A (at 40°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)
- Electrical Durability
- 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V)
- Impulse Withstand Voltage
- 6 kV
- Operating Speed
- 3600 cycles per hr
- Tightening Torque
- 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)
- Net Weight
- 1.027 kg
- Impedance
- 2.5 mOhm
- Fuse Amps
- 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)
- Includes Protective Cover
- Yes
- Insulation Resistance Range
- Greater Than 10 MOhms (Signalling Circuit)
- Vibration Resistance
- 4 G (Contactor Closed), 2 G (Contactor Open)
- Non-Overlap Time
- 1.5 ms
- Rated Making Capacity
- 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
- Switching Voltage
- 17 V (Signalling Circuit)
- Rated Insulation Volts
- 600/690V
- Product Name
- TeSys Deca
- Maximum Operating Rate
- 3600 cyc/h 60°C
- Ambient Air Temperature For Operation
- -40-60°C, 60-70°C with derating
- Ambient Air Temperature For Storage
- -60-80°C
- Device Presentation
- preassembled with reversing power busbar
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Climatic Withstand
- IACS E10, IEC 60947-1 Annex Q category D
- Pole Contact Composition
- 3 NO
- Protective Treatment
- TH IEC 60068-2-30
- [Icw] Rated Short-Time Withstand Current
- 30 A 40°C - 10 min for power circuit, 61 A 40°C - 1 min for power circuit, 105 A 40°C - 10 s for power circuit, 210 A 40°C - 1 s for power circuit, 100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit
- Time Constant
- 28 ms
- Fire Resistance
- 850°C IEC 60695-2-1
- Interlocking Type
- mechanical
- Protective Cover
- with
- Contactor Application
- motor control, resistive load
- Power Dissipation Per Pole
- 1.56 W AC-1, 0.36 W AC-3
- [Ui] Rated Insulation Voltage
- power circuit 690 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
- Control Circuit Type
- DC standard
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1, mirror contact 1 NC IEC 60947-4-1
- Utilisation Category
- AC-3, AC-1
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hz, vibrations contactor closed4 Gn, 5...300 Hz, shocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms
- Full Load Current - Resistive
- 25 A
- Horsepower @ Single Phase - 240V AC
- 2 hp
- Full Load Current - Inductive
- 12 A
- Horsepower @ Three Phase - 240V AC
- 3 hp
- Horsepower @ Three Phase - 208V AC
- 3 hp
- Horsepower @ Three Phase - 480V AC
- 7 1/2 hp
- Conventional Free Air Thermal Current
- 10 A (at 60°C Signalling Circuit), 25 A (at 60°C Power Circuit)
- Maximum Voltage Rating
- 690V AC, 300V DC
- Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hz, power circuit <= 300 V DC
- Hold-In Power Consumption in W
- 5.4-5.4 W 20°C
- Mounting Style
- Plate, Rail
- Inrush Power in W
- 5.4-5.4 W 20°C)
- Rated Operational Current
- 25 A (at <60°C) at <= 440 V AC AC-1 for power circuit, 12 A (at <60°C) at <= 440 V AC AC-3 for power circuit
- Maximum Operating Temperature
- 140 Degrees F
