Shop TE CONNECTIVITY

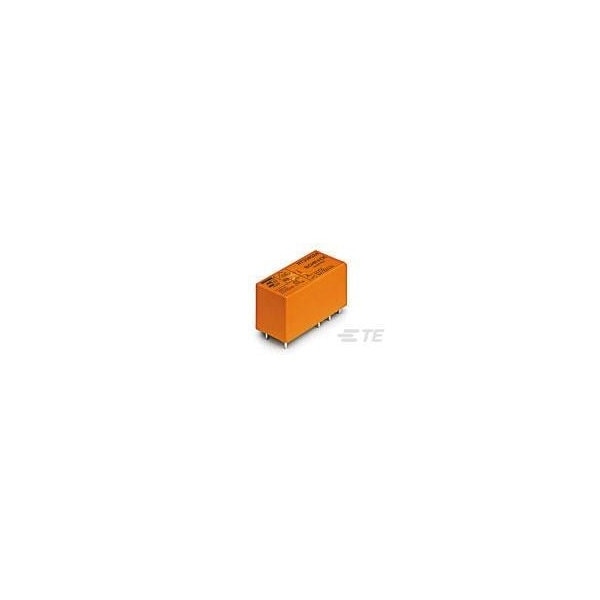

PCB, Socket, PCB Relay, 16 A, PCB, Plug-in

  • Mfr # 8-1393238-0

  • Zoro # G001025887

product price:  $10.85
/ea
Sold in multiples of 20 for $217.00

Key Features

Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Coil Voltage
24V DC
Current Rating
16 A
Power Consumption - Relay
400 mW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8-1393238-0
Zoro #
G001025887
UPC #
-
Country of Origin
Austria

Details

Item
General Purpose Power Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Coil Voltage
24V DC
Current Rating
16 A
Power Consumption - Relay
400 mW
Contact Material
AgNi90/10
Features
UL Coil Insulation Class F
Number of Poles
1
Contact Limiting Continuous Current
16A
Contact Limiting Short-Time Current
16A
Contact Voltage Rating
250V AC
Switching Voltage
400V AC
Contact Limiting Breaking Current
16A
Coil Type
Monostable, DC
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Coil Resistance
1440 Ω
Operating Temp. Range
70 to 85°C
Protection Category
RTIII
Contact Rating
16A
Contact Limiting Making Current
30A
Insulation Clearance
10 mm [ .394 in ]
Insulation Creepage
10 mm [ .394 in ]
Contact Rating (AC)
16 A @ 250V
Contact Form
SPDT
Number of Pins
8
