Shop TE CONNECTIVITY

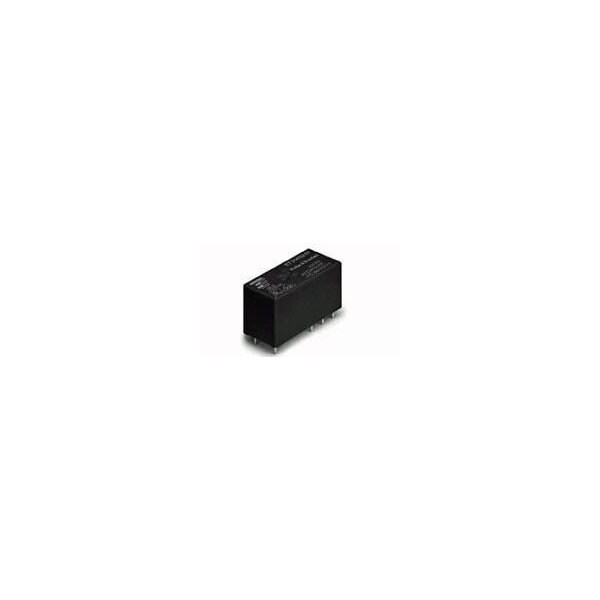

PCB, Socket, Power Relay, 12 A, 1, PCB, Plug-in

  • Mfr # 2-1419108-7
  • Zoro # G705865826
product price:
$
9.55
/ea
Sold in multiples of 20 for $191.00

Key Features

Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Number of Pins
6
Coil Voltage
12V DC
Current Rating
12 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-1419108-7
Zoro #
G705865826
UPC #
-
Country of Origin
China

Details

Item
General Purpose Power Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Number of Pins
6
Coil Voltage
12V DC
Current Rating
12 A
Contact Material
AgNi90/10
Number of Poles
1
Features
UL Coil Insulation Class F
Power Consumption - Relay
400 mW
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Rating
0A
Protection Category
RTIII
Insulation Creepage
.394 in
Switching Voltage
400 VAC
Coil Type
Monostable, DC
Contact Limiting Continuous Current
12A
Contact Limiting Making Current
25 A
Operating Temp. Range
85°C
Contact Limiting Breaking Current
12A
Insulation Clearance
.394 in
Contact Voltage Rating
250 VAC
Coil Resistance
360 Ω
Contact Form
SPST-NO
Base Shape
Square
Contact Rating (AC)
12 A @ 250V

Description

Power/Signal Relay, 1 Form A, Spst, Momentary, 0.033A (Coil), 12Vdc (Coil), 400Mw (Coil), 12A (Contact), Dc Input, Random, Ac Output, Panel Mount
