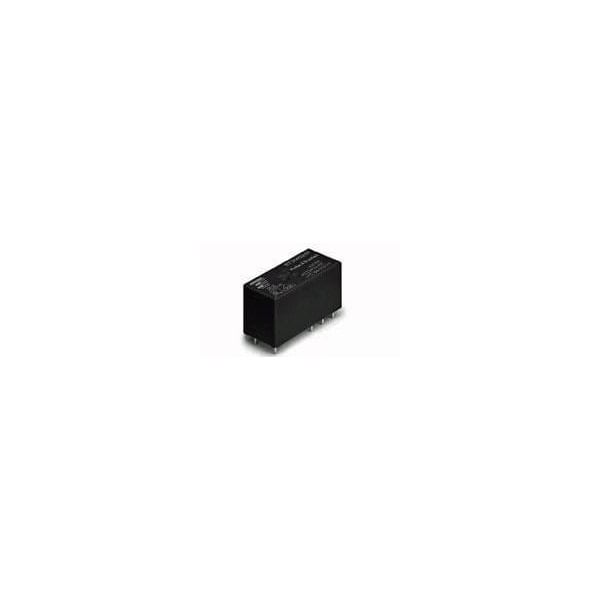

PCB, Socket, Power Relay, 16 A, PCB, Plug-in
Mfr # 2-1393237-7
Zoro # G501017986
product price: $6.49
/eaSold in multiples of 20 for $129.80
Key Features
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug-in
Coil Voltage
24V DC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2-1393237-7
Zoro #
G501017986
UPC #
-
Country of Origin
Austria
Details
Item
Power Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug-in
Coil Voltage
24V DC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V AC
Contact Material
AgNi90/10
Number of Poles
1
Features
UL Coil Insulation Class F
Power Consumption - Relay
400 mW
Contact Limiting Making Current
30 A
Insulation Clearance
.394 in
Coil Type
Monostable, DC
Operating Temp. Range
85°C
Insulation Creepage
.394 in
Coil Resistance
1440 Ω
Protection Category
RTII
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Rating
16 A
Contact Limiting Continuous Current
16 A
Contact Limiting Breaking Current
16 A
Contact Voltage Rating
250 VAC
Switching Voltage
400 VAC
