Shop TE CONNECTIVITY

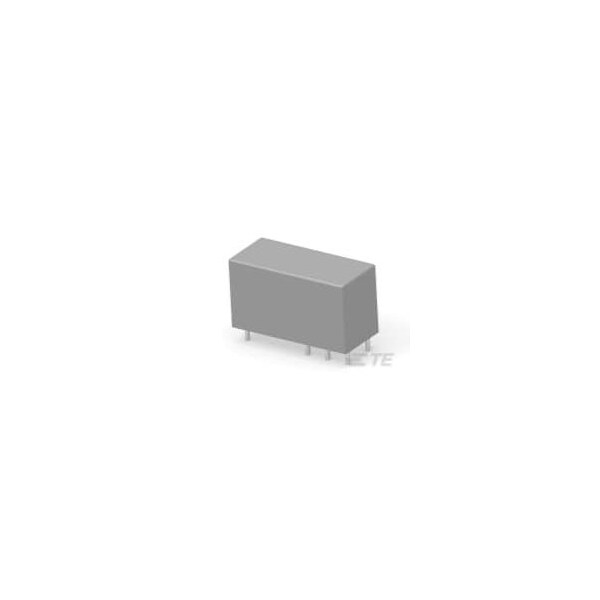

PCB, Socket, Power Relay, 16 A, PCB, Plug-in

  • Mfr # 7-1393239-5

  • Zoro # G005865793

product price:  $7.45
/ea
Sold in multiples of 12 for $89.40

Key Features

Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Coil Voltage
24V DC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7-1393239-5
Zoro #
G005865793
UPC #
-
Country of Origin
Austria

Details

Item
General Purpose Power Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug In
Coil Voltage
24V DC
Current Rating
16 A
Contact Rating (AC)
16 A @ 250V
Contact Material
AgSnO
Number of Poles
1
Features
UL Coil Insulation Class F
Power Consumption - Relay
400 mW
Insulation Clearance
10 mm [ .394 in ]
Protection Category
RTII
Contact Limiting Continuous Current
16A
Contact Limiting Breaking Current
16A
Contact Voltage Rating
250V AC
Contact Rating
16A
Contact Limiting Making Current
30A
Dielectric Voltage
5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Switching Voltage
400V AC
Insulation Creepage
10 mm [ .394 in ]
Operating Temp. Range
70 to 85°C
Contact Limiting Short-Time Current
16A
Coil Type
Monostable, DC
Coil Resistance
1440 Ω
Contact Form
SPDT
Number of Pins
8

Description

Power/Signal Relay, 1 Form C, Spdt, Momentary, 0.017A (Coil), 24Vdc (Coil), 400Mw (Coil), 16A (Contact), Dc Input, Random, Ac Output, Panel Mount
