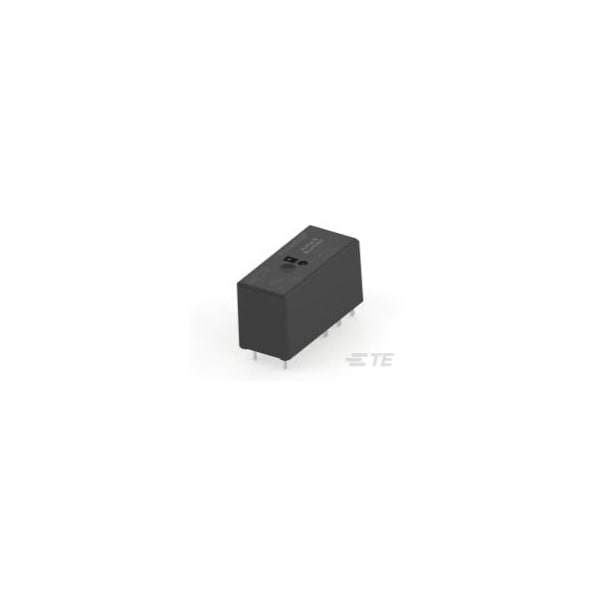

PCB, Socket, Power Relay, 8 A, PCB, Plug-in

Name: PCB, Socket, Power Relay, 8 A, PCB, Plug-in
Brand: Te Connectivity
SKU: G701017649
Price: 125.80 USD
Availability: InStock

6.29

/ea

Sold in multiples of 20 for $125.80

Mounting Style

PCB, Socket

Electrical Connection

PCB - Through Hole, Plug In

Coil Voltage

24V DC

Current Rating

8 A

Number of Poles

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: General Purpose Power Relay
Mounting Style: PCB, Socket
Electrical Connection: PCB - Through Hole, Plug In
Coil Voltage: 24V DC
Current Rating: 8 A
Number of Poles: 2
Contact Material: AgNi90/10
Features: UL Coil Insulation Class F
Power Consumption - Relay: 400 mW
Dielectric Voltage: 2500 Vrms Adjacent Contacts; 5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Coil Resistance: 1440 Ω
Contact Limiting Continuous Current: 8A
Contact Limiting Breaking Current: 8A
Switching Voltage: 400 VAC
Protection Category: RTII
Insulation Creepage: .394 in
Insulation Clearance: .394 in
Contact Limiting Making Current: 15 A
Contact Voltage Rating: 250 VAC
Coil Type: Monostable, DC
Contact Rating: 0.333333333333333A
Operating Temp. Range: 85°C
Contact Form: DPST-NO
Number of Pins: 6
Contact Rating (AC): 8 A @ 250V
Base Shape: Square
