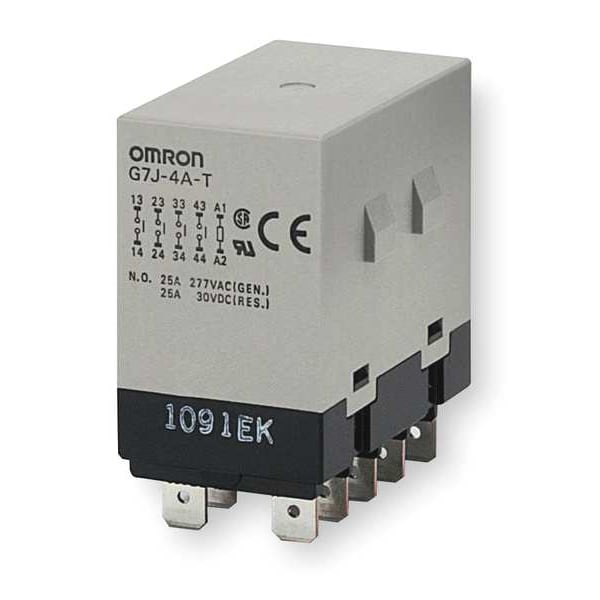

W-Bracket, Enclosed Power Relay, Square, 25 A, 10 Pins, Quick Connect

  • Mfr # G7J-4A-T-W1-AC24

  • Zoro # G3003576

product price:  $45.89
/ea

Key Features

Mounting Style
W-Bracket
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
10
Coil Voltage
24V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G7J-4A-T-W1-AC24
Zoro #
G3003576
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height - Relay
2.24 in
Dimensions
2.52"H, 1.36"W, 2.03"D
Flat Pin Width
0.031 in
Mounting Hole Diameter
0.18 in
Body Depth
2.15 in
Body Width
1.36 in
Body Height
2.11 in
Overall Depth
2.52 in

Details

Item
Enclosed Power Relay
Mounting Style
W-Bracket
Electrical Connection
Quick-Connect
Base Shape
Square
Number of Pins
10
Coil Voltage
24V AC
Current Rating
25 A
Contact Form
4PST-NO
Contact Rating (AC)
25 A @ 240V (NO), 8 A @ 240V (NC)
Contact Rating (DC)
25 A @ 30V (NO), 8 A @ 30V (NC)
Standards
RoHS Compliant
Coil Rating
2.6VA, 2.0W
Contact Material
Silver Alloy
Number of Poles
4
Features
Includes Mfr. No. R99-04-FOR-G5F (1YAX1) Mounting Bracket, Miniature Hinge For Maximum Switching Power, No Contact Chattering for Momentary Voltage Drops Up to 50% of Rated Voltage
Power Consumption - Relay
2.6 VA
Hz
50/60
Contact Amp Rating (Inductive)
25A @ 220VAC (NO), 8A @ 220VAC (NC)
Contact Amp Rating (Resistive)
25A @ 220VAC (NO), 8A @ 220VAC (NC)
For Use With
Air Conditioners, Copy Machines, Facsimile Machines, Food Processing Equipment, Heater Switching Controllers, Inverters, Motors, Office Equipment, Packers, Power Tools
Status Indicator
No Indicator
Series
G7J Series
Minimum Switching Current
100 mA
Horsepower @ 240V AC
3 hp
Includes
R99-04 W-Brackets
Sealing
Semi-Sealed
Dielectric Strength
2,000V AC between Contacts of the Same Polarity, 4,000V AC between Coil and Contact, 4,000V AC between Contacts of Different Polarity
Minimum Operating Temperature
-13 Degrees F
Motor Rated
Yes
Electrical Operating Durability
100,000
Operating Current
25 A at 220V AC (Inductive Load NO), 25 A at 220V AC (Resistive Load NO), 25 A at 30V DC (Resistive Load NO)
Input Voltage
24V AC
Resistance Properties
Flame-Resistant
Mechanical Operating Durability
1,000,000
Maximum Operating Temperature
140 Degrees F
Insulation Resistance
1,000 megaohm
Response Time
50 msec
Maximum Switching Voltage
125V DC, 250V AC
Frequency
50/60 Hz
Push-To-Test Method
Push Button
Power Consumption
1.8 VA, 2.6 VA
Horsepower @ 120V AC
1 1/2 hp
Type
Power

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 4PST-NO, Current Rating 25 A, Electrical Connection Quick-Connect, Flat Pin Width 0.031 in, Number of Pins 10, Sealing Semi-Sealed, Status Indicator No Indicator, Contact Rating (AC) 25 A @ 240V (NO), 8 A @ 240V (NC), Contact Rating (DC) 25 A @ 30V (NO), 8 A @ 30V (NC), Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 3 hp, Mounting Style W-Bracket, Push-To-Test Method Push Button, Body Depth 2.15 in
