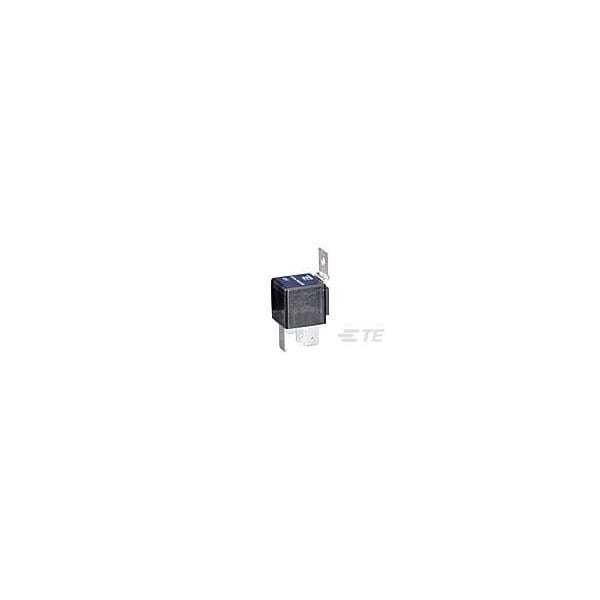

Plug-In, Power Relay, 25 A, Plug-in, Quick Connect
Mfr # 1-1393304-1
Zoro # G305865882
product price:Â $12.15
/ea
Sold in multiples of 7 for $85.05
Key Features
Mounting Style
Socket
Electrical Connection
Plug In, Quick Connect
Coil Voltage
24V DC
Current Rating
25 A
Contact Rating (AC)
25 A @ 240V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1-1393304-1
- Zoro #
- G305865882
- UPC #
- -
- Country of Origin
- Portugal
Details
- Item
- Power Relay
- Mounting Style
- Socket
- Electrical Connection
- Plug In, Quick Connect
- Coil Voltage
- 24V DC
- Current Rating
- 25 A
- Contact Rating (AC)
- 25 A @ 240V
- Power Consumption - Relay
- 1800 mW
- Contact Material
- Ag Alloy
- Contact Limiting Short-Time Current
- 300 A
- Protection Category
- RTI
- Coil Type
- Monostable, DC
- Dielectric Voltage
- 500 Vrms Coil and Contact; 500 Vrms Open Contacts
- Contact Limiting Breaking Current
- 25 A
- Coil Resistance
- 324 Ω
- Contact Rating
- 25 A
- Contact Limiting Making Current
- 240 A
- Switching Current
- 1000mA @ 5VDC
- Contact Limiting Continuous Current
- 70 A
- Operating Temp. Range
- 105 to 125°C
- Contact Form
- 1 Form A (NO)
- Contact Rating (DC)
- 70 A @ 24V
Description
Power/Signal Relay, 1 Form A, Spst, Momentary, 0.072A (Coil), 24Vdc (Coil), 1800Mw (Coil), 70A (Contact), 24Vdc (Contact), Dc Input, Ac/Dc Output, Panel Mount
