  5. Rectangular Power Connector, 2 Contact(S), Female, Crimp Terminal, Plug

This item is Discontinued.

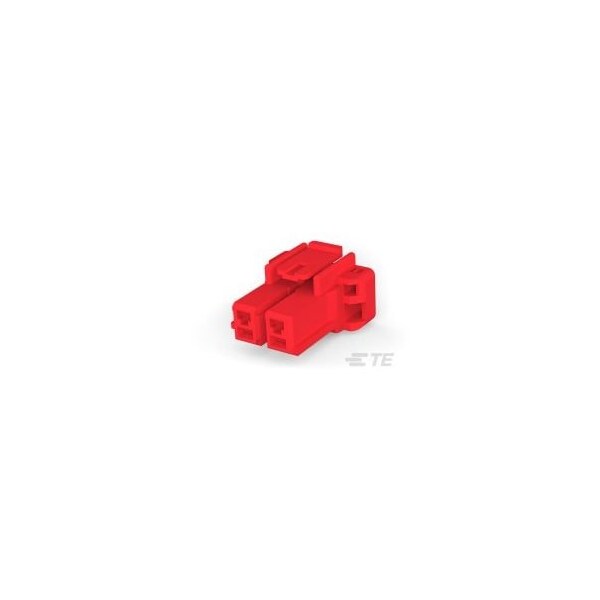

Te Connectivity Rectangular Power Connector, 2 Contact(S), Female, Crimp Terminal, Plug 1-1376388-2

Rectangular Power Connector, 2 Contact(S), Female, Crimp Terminal, Plug (Discontinued)

  • Mfr # 1-1376388-2
  • Zoro # G505783290
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1376388-2
Zoro #
G505783290
UPC #
-
Country of Origin
China

Dimensions

Width
0.638 in
Length
0.591 in
Height
9.6 mm
Max. Insulation Dia.
0.122 in

Details

Item
Housing
Color
Red
Number of Rows
1
Insulation Material
Nylon
Maximum Voltage
300 V AC
Current
10 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Application
Power, Signal
Material
Nylon
Connection Material
Copper Alloy
Terminal Type
Crimp
Contact Type
Socket
Hole Center to Center
5 mm
Standards
CSA Certified; UL E28476; UL Recognized
Current Rating
10 A
Max. Temp.
105°C
Max. Voltage
300V AC
Number of Contacts
2
For Use With
Receptacle Housing
Flammability Rating
UL 94 V-0
Connector Terminates To
Wire & Cable
Termination Style
Crimp
