Shop TE CONNECTIVITY

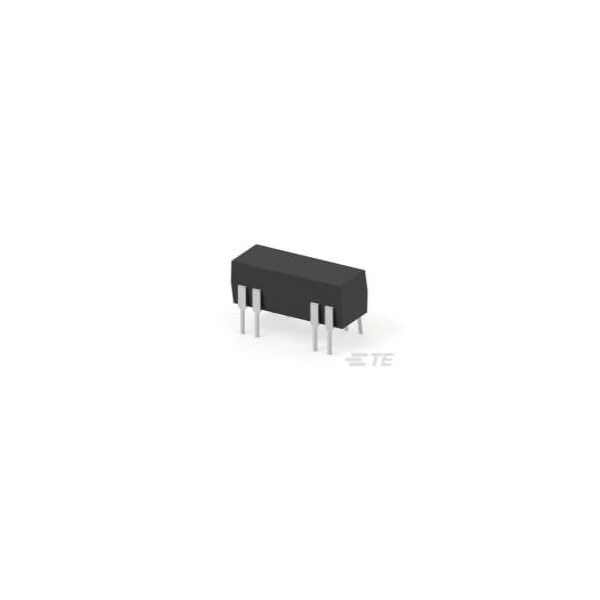

Relay, 24V AC/10V DC Coil Volts, 1 Form B (NC)

  • Mfr # 2-1393771-4

  • Zoro # G500973184

product price:
$
27.25
/ea
Sold in multiples of 25 for $681.25

Key Features

Mounting Style
PCB
Coil Voltage
5/6V DC
Body Depth - Relay
0.799 in
Features
Monostable, DC Magnetic System; UL Coil Insulation, Coil Suppression Diode; Reed Contacts
Body Width - Relay
0.3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-1393771-4
Zoro #
G500973184
UPC #
-
Country of Origin
Mexico

Dimensions

Body Depth - Relay
0.799 in
Body Width - Relay
0.3 in
Body Height - Relay
0.315 in

Details

Item
Reed Relay
Mounting Style
PCB
Coil Voltage
5/6V DC
Features
Monostable, DC Magnetic System; UL Coil Insulation, Coil Suppression Diode; Reed Contacts
Contact Material
Ruthenium
Power Consumption - Relay
Coil: 575 mW; 50 to 288 mW
Coil Resistance
200 Ohm
Dielectric Strength
0 to 500 V Between Coil/Contact Class; 175 Vrms Between Open Contacts
Protection Category
RTIII
Operating Temp. Range
-35 to 85°C
Base Shape
Square
Contact Form
SPDT
Electrical Connection
PCB - Through Hole
Current Rating
500 mA
Number of Pins
14
Contact Rating (DC)
0.5 A @ 10V

Documents & Resources
