Shop TE CONNECTIVITY

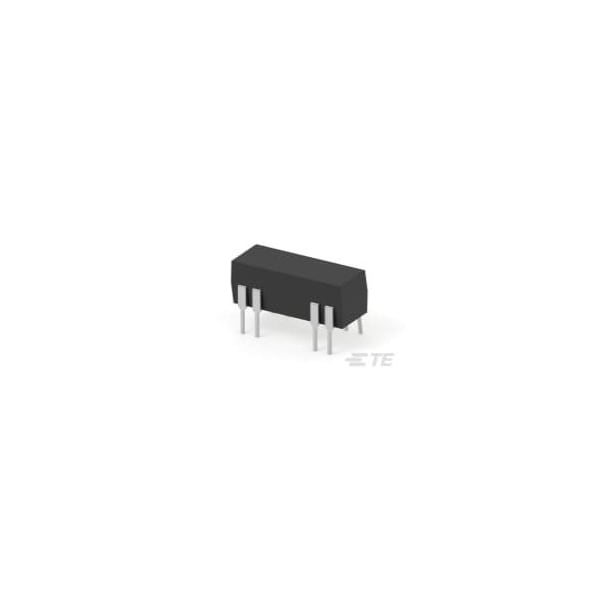

Relay, 24V AC/20V DC Coil Volts, 1 Form A (NO)

  • Mfr # 2-1393771-0

  • Zoro # G100973201

product price:
$
25.89
/ea
Sold in multiples of 25 for $647.25

Key Features

Mounting Style
PCB
Coil Voltage
24V DC
Body Height - Relay
0.315 in
Body Depth - Relay
0.799 in
Contact Material
Ruthenium
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2-1393771-0
Zoro #
G100973201
UPC #
-
Country of Origin
China

Dimensions

Body Height - Relay
0.315 in
Body Depth - Relay
0.799 in
Body Width - Relay
0.3 in

Details

Item
Relay
Mounting Style
PCB
Coil Voltage
24V DC
Contact Material
Ruthenium
Power Consumption - Relay
Coil: 400 mW; 50 to 288 mW
Features
Monostable, DC Magnetic System; UL Coil Insulation; Reed Contacts
Operating Temp. Range
-35 to 85°C
Protection Category
RTIII
Coil Resistance
2150 Ohm
Dielectric Strength
0 to 500 V Between Coil/Contact Class; 250 Vrms Between Open Contacts
Contact Form
SPST-NO
Number of Pins
14
Electrical Connection
PCB - Through Hole
Current Rating
500 mA
Base Shape
Square
Contact Rating (DC)
0.5 A @ 20V
