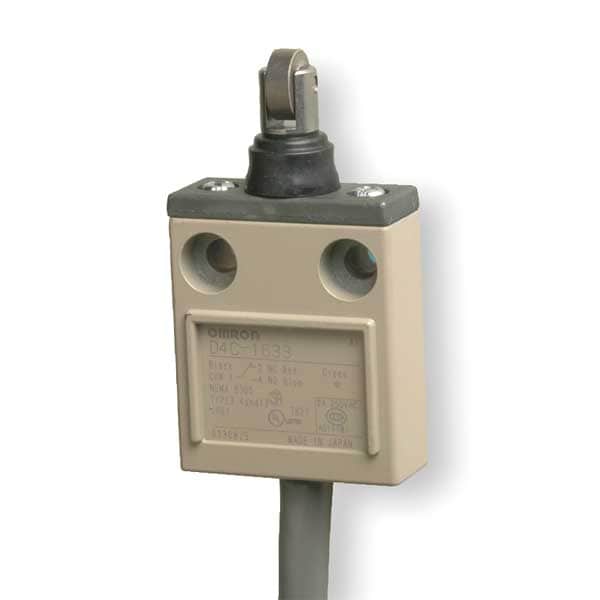

Limit Switch, Plunger, Roller, SPDT, 5A at 240V AC, Actuator Location: Top

  • Mfr # D4C1633

  • Zoro # G3415806

product price:  $152.43
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D4C1633
Zoro #
G3415806
UPC #
-
Country of Origin
Japan

Dimensions

Depth
0.63"
Roller Dia.
0.47 in
Height
2.60"
Width
1.57"
Body Height - Limit Switch
2.13 in
Roller Width
0.17 in
Body Depth - Limit Switch
0.63 in
Body Width - Limit Switch
1.33 in
Mounting Hole Diameter
0.2 in
Body Depth
0.62 in
Overall Height
3.35 in
Body Width
1.57 in
Body Height
1.92 in
Overall Depth
0.74 in
Overall Width
1.57 in
Roller Diameter
0.47 in
Manufacturer Warranty Length
1 yr

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A at 240V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Standards
CCC, CE, CSA, TUV, UL Listed
NEMA Rating
13, 3, 4
Actuator Style (Limit Switch)
Plunger, Roller
Roller Material
Stainless Steel
Mounting Hole - Limit Switch
(2) 0.20 in dia
Actuator Location
Top
Series
D4C
DC Contact Rating
4 A @ 30 V
Boot Sealed Actuator (Limit Switch)
Yes
Voltage Rating
240VAC
Stem Thread - Limit Switch
No Stem
Body Style (Limit Switch)
Miniature
IP Rating
IP67
Actuator Location (Limit Switch)
Top
Mounting Hole Spacing - Limit Switch
0.98 in
Limit Switch Style
General Purpose Limit Switch
Operating Force
17.7 N-m
Body Material
Aluminum
Operating Temp. Range
-14 Degrees to 158 Degrees F
Wiring Entry
3m Cable
Boot Sealed Actuator - Limit Switch
Yes
Electrical Connection
Pre-Wired Cable
Basic Actuator Style (Limit Switch)
Plunger
Contact Form
SPDT
Number of Poles
1
Amps
5
Travel
Maximum Pre-Travel 1.8mm, Minimum Over-Travel 3mm
Movement
Top
Contact Form - Limit Switch
SPDT
AC Contact Rating
5 A @ 250 V
Actuator Style
Roller Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Differential Travel
0.01 in
Overtravel
0.12 in
Operating Temperature - Minimum
-14 Degrees F
Roller Position
Top
Mounting Hole Horizontal Center to Center Distance
25 mm
Operating Torque - Minimum
5.31 in-lb
Includes Actuator
Actuator Included
Total Travel
0.19 in
Operating Force - Maximum
17.65 N
Roller Adjustability
Fixed
Lamp Type
LED
Action
Momentary
Directional Movement
Linear
NEMA Enclosure Rating
13, 3, 4
Boot Sealed Actuator
Boot Included
Plunger Adjustability
Fixed
Operating Temperature - Maximum
158 Degrees F
Pretravel
0.07 in
Operating Torque - Maximum
156.22 in-lb
Mounting Style
Surface
Number of Mounting Holes
2
Mounting Hole Vertical Center to Center Distance
25 mm
Body Configuration
Plug-In

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 5A @ 240V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 2.13 in, Body Width - Limit Switch 1.33 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Miniature, NEMA Rating 13, 3, 4, Mounting - Limit Switch Surface, Electrical Connection Pre-Wired Cable
