Te Connectivity RIGHT ANGLE DIP SW 4 P SEALED 1-435802-5 - main

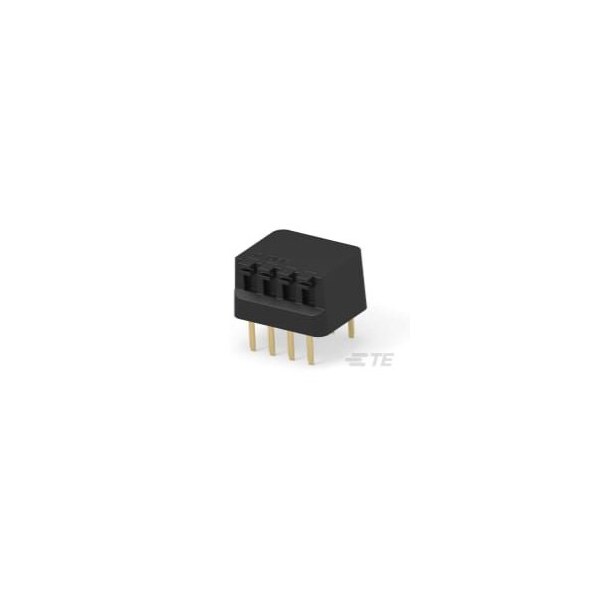

RIGHT ANGLE DIP SW 4 P SEALED

  • Mfr # 1-435802-5

  • Zoro # G300965952

product price:  $2.19
/ea
Sold in multiples of 4400 for $9,636.00

Key Features

Length
12.19 mm [ .48 in ]
Height
7.36 mm [ .29 in ]
Switch Type
DIP
Contact Mating Area Plating Thickness (µin)
30
UL Flammability Rating
UL 94V-0
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-435802-5
Zoro #
G300965952
UPC #
-
Country of Origin
Mexico

Dimensions

Length
12.19 mm [ .48 in ]
Height
7.36 mm [ .29 in ]
Contact Mating Area Plating Thickness (µin)
30
Termination Post Length
3.56 mm [ .14 in ]

Details

Switch Type
DIP
UL Flammability Rating
UL 94V-0
Contact Mating Area Plating Material
Gold
Number of Switches
4
Operating Temperature Range (°C)
-55 to 105
Contact Current Rating (A)
1.5
Sealed
Yes
Configuration (Pole-Throw)
Single Pole - Single Throw
Mounting Type
Through Hole
Solder Tail Contact Plating
Gold over Nickel
Actuator Style
Piano (Side Actuated)
Contact Base Material
Copper Alloy
Housing Color
Black
Voltage Rating (VDC)
50
Product Type
Switch
Number of Positions
4
Centerline
2.54 mm [ .1 in ]
Housing Material
Polyester GF
Auto-Insertable
No
Mounting Angle
Vertical
Low Profile
Yes
Seal Type
Strippable
