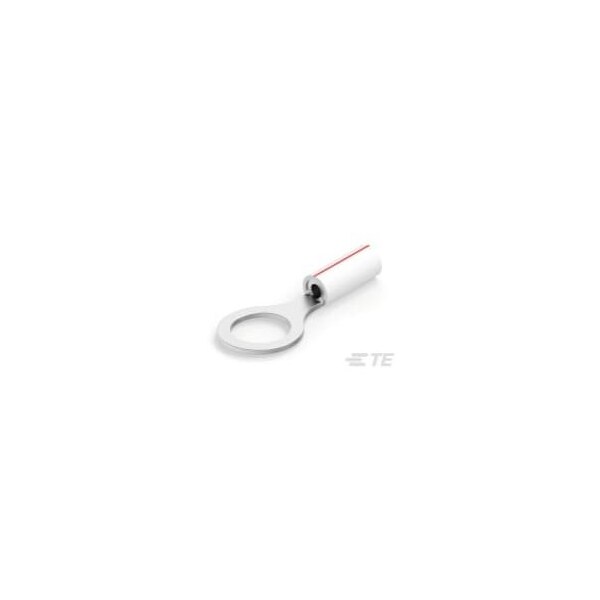

Ring Terminal, 5/16 in Stud Size, 16 AWG, PVF2 Insulated, Bare
- Mfr # 696422-8
- Zoro # G300976552
product price:Â
$
1.45
/ea
Sold in multiples of 150 for
$217.50
Key Features
Terminal Shape
Standard Ring Tongue
Insulation Color
Natural
Maximum Wire Size
16 AWG
Insulation Type
PVF2
Stud Size
5/16 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 696422-8
- Zoro #
- G300976552
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 16 AWG
- Stud Size
- 5/16 in
- Overall Length
- 1.083 in
- Barrel Inside Dia.
- 0.128 in
- Minimum Wire Size
- 22 AWG
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Color
- Natural
- Insulation Type
- PVF2
- Maximum Operating Temperature
- 302 Degrees F
- Standards
- MIL-T-7928, UL & CSA Listed
- Features
- Sheared Terminal; Wire Insulation Support
- Wire Type
- Stranded, Regular Wire
- Seam
- Long, Closed Barrel
- Terminal Orientation
- Straight
- Insulation Dia
- 0.08 to 0.125 in
- Contact Plating Material
- Copper, Tin
- Contact Material
- Copper
- Maximum Voltage
- 300 V
- Insulation Coverage
- Partial Coverage
- Minimum Operating Temperature
- 0 Degrees F
- Termination Style
- Crimp
