Shop ZORO SELECT

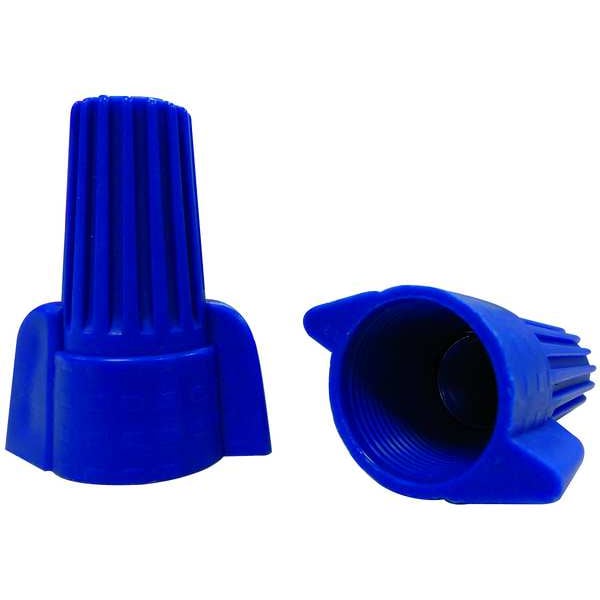

Twist-On Wire Connector, 6 AWG Max, Blue, Thermoplastic Insulation, 600 V, 25 PK

  • Mfr # 5UYH6
  • Zoro # G1637474
product price:
$
8.29
/pk of 25, $0.33/ea

Key Features

Type
Twist-On
Color
Blue
Insulation Material
Thermoplastic
Maximum Voltage
600 V
Minimum Wire Combination
(3) 18 AWG with (1) 12 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5UYH6
Zoro #
G1637474
UPC #
190735599723
Country of Origin
China
Item
Twist-On Wire Connector
Type
Twist-On
Color
Blue
Insulation Material
Thermoplastic
Maximum Voltage
600 V
Minimum Wire Combination
(3) 18 AWG with (1) 12 AWG
Maximum Wire Combination
(3) 10 AWG with (1) 12 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Standards
CSA Certified: 175604UL Listed: E113650
Series
P17
Application
General Purpose
Maximum Conductors
5
Compatible with Product Type
Light Fixtures and House Wiring
Compatible Installation Tool Model Number
No. 6
For Conductor Material
Copper
Special Features
Deep Skirt Protects against Flash-Over, Square-Wire Spring Creates Secure Connections
Finish
Zinc Plated
Material
Steel
Termination Style
Twist-On
Contact Finish
Zinc
Wire Connector Style
Wing
Contact Material
Steel

Description

Twist On Wire Connector, Color Blue, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (3) 18 AWG with (1) 12 AWG, Maximum Wire Combination (3) 10 AWG with (1) 12 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CSA Certified: 175604UL Listed: E113650, Wire Connector Style Wing, Compatible Installation Tool Model Number No. 6
