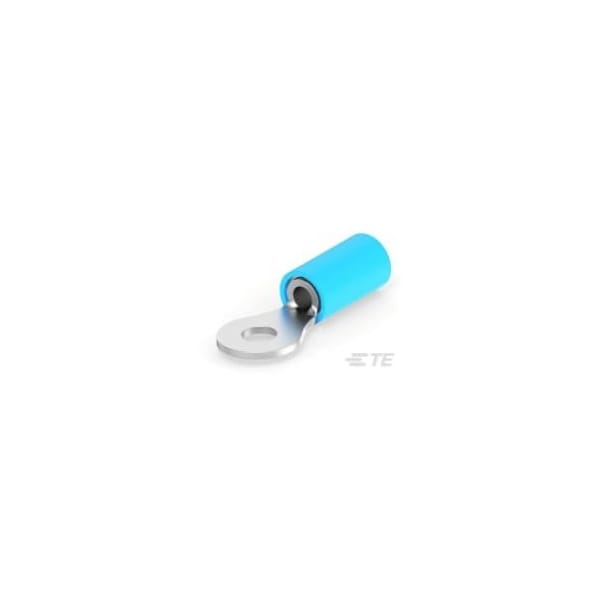

Ring Terminal, #6 Stud Size, 14 AWG, 300 V, Nylon Insulated, Blue
Mfr # 8-36158-1
Zoro # G100926733
product price:Â
$
1.19
/ea
Sold in multiples of 100 for $119.00
Key Features
Terminal Shape
Standard Ring Tongue
Insulation Color
Blue
Maximum Wire Size
14 AWG
Insulation Type
Nylon
Stud Size
#6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8-36158-1
- Zoro #
- G100926733
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Maximum Wire Size
- 14 AWG
- Stud Size
- #6
- Barrel Inside Dia.
- 0.173 to 0.175 in
- Overall Length
- 0.859 in
- Minimum Wire Size
- 16 AWG
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Insulation Color
- Blue
- Insulation Type
- Nylon
- Maximum Voltage
- 300 V
- Maximum Operating Temperature
- 105 Degrees C
- Wire Type
- Solid or Stranded, Regular Wire
- Seam
- Standard, Closed Barrel
- Contact Plating Material
- Copper, Tin
- Terminal Orientation
- Straight
- Insulation Dia
- 0.1149 to 0.1696 in
- Insulation Coverage
- Partial Coverage
- Minimum Operating Temperature
- 0 Degrees C
- Termination Style
- Crimp
- Standards
- UL & CSA Listed
- Contact Material
- Copper
